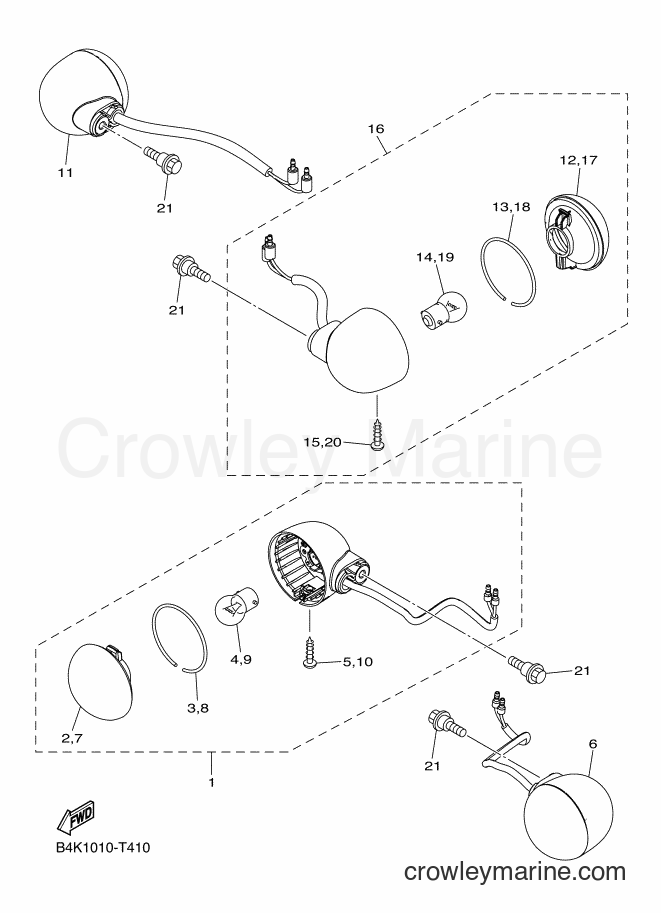

2018 Scooter XCH50 - XCH50 (B4K1) [010] FLASHER LIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XCH50 (B4K1) [010] - FLASHER LIGHT
Change View:
1
Required: 1
FRONT FLASHER LIGHT ASSY 2
Price unavailable
2
Required: 1
. LENS, FLASHER
Price unavailable
3
Required: 1
. GASKET, FLASHER LENS
Price unavailable
4
Required: 1
. BULB (12V-10W)
Price unavailable
5
Required: 1
. SCREW, TAPPING
Price unavailable
6
Required: 1
FRONT FLASHER LIGHT ASSY 1
Price unavailable
7
Required: 1
. LENS, FLASHER
Price unavailable
8
Required: 1
. GASKET, FLASHER LENS
Price unavailable
9
Required: 1
. BULB (12V-10W)
Price unavailable
10
Required: 1
. SCREW, TAPPING
Price unavailable
11
Required: 1
REAR FLASHER LIGHT ASSY 2
Price unavailable
12
Required: 1
. LENS, FLASHER
Price unavailable
13
Required: 1
. GASKET, FLASHER LENS
Price unavailable
14
Required: 1
. BULB (12V-10W)
Price unavailable
15
Required: 1
. SCREW, TAPPING
Price unavailable
16
Required: 1
REAR FLASHER LIGHT ASSY 1
Price unavailable
17
Required: 1
. LENS, FLASHER
Price unavailable
18
Required: 1
. GASKET, FLASHER LENS
Price unavailable
19
Required: 1
. BULB (12V-10W)
Price unavailable
20
Required: 1
. SCREW, TAPPING
Price unavailable
21
Required: 4
BOLT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
