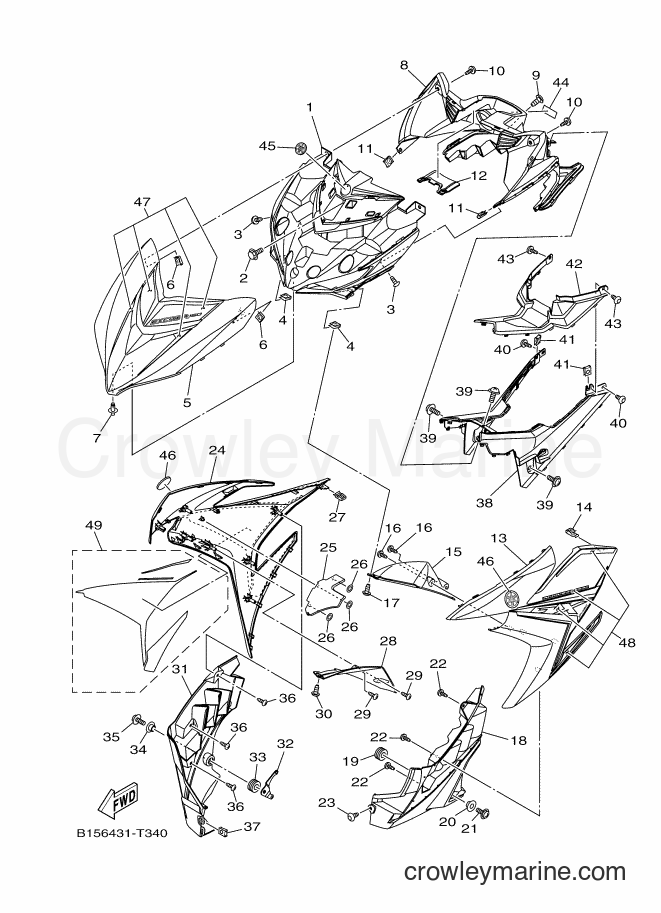

2018 Scooter T150 - T150 (B156) [010] LEG SHIELD diagram
![Yamaha Motors T150 (B156) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/R1FBwtZv.png)
1
Required: 1
PANEL, INNER 1
Price unavailable
2
Yamaha Motors
Bolt with Washer90119-06137-00
Required: 1
BOLT, WITH WASHER
$8.07
You save $1.42
3
Required: 2
SCREW, ROUND TAPPING
Price unavailable
4
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
5
Required: 1
PANEL, FRONT
Price unavailable
6
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
In stock
Only 4 remaining
$1.44
You save $0.26
8
Required: 1
PANEL, INNER 2
Price unavailable
9
Required: 1
SCREW, WITH WASHER
Price unavailable
10
Required: 2
SCREW, ROUND TAPPING
Price unavailable
11
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
12
Required: 1
COVER 3
Price unavailable
13
Required: 1
PANEL 1
Price unavailable
14
Required: 1
HOOK
Price unavailable
15
Required: 1
GUIDE, AIR 1
Price unavailable
16
Yamaha Motors
Tapping Screw97707-40014-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-40014-00
$7.22
You save $1.27
17
Required: 1
SCREW, ROUND TAPPING
Price unavailable
18
Required: 1
COVER, UNDER
Price unavailable
19
Yamaha Motors
Grommet (3AK)90480-18495-00
Required: 1
GROMMET
Supersedes: 90480-18418-00
$8.92
You save $1.57
20
Required: 1
COLLAR
Price unavailable
21
Yamaha Motors
Screw with Washer90159-06060-00
Required: 1
SCREW, WITH WASHER
Supersedes: 90159-06033-00
$8.07
You save $1.42
22
Yamaha Motors
Tapping Screw97707-40014-00
Required: 3
SCREW, TAPPING
Supersedes: 97702-40014-00
$7.22
You save $1.27
23
Required: 1
SCREW, ROUND TAPPING
Price unavailable
24
Required: 1
PANEL 2
Price unavailable
25
Required: 1
SHIELD, HEAT
Price unavailable
26
Required: 3
NUT, SPRING
Price unavailable
27
Required: 1
HOOK
Price unavailable
28
Required: 1
GUIDE, AIR 2
Price unavailable
29
Yamaha Motors
Tapping Screw97707-40014-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-40014-00
$7.22
You save $1.27
30
Required: 1
SCREW, ROUND TAPPING
Price unavailable
31
Required: 1
COVER, UNDER 2
Price unavailable
32
Required: 1
STAY 2
Price unavailable
33
Yamaha Motors
Grommet (3AK)90480-18495-00
Required: 1
GROMMET
Supersedes: 90480-18418-00
$8.92
You save $1.57
34
Required: 1
COLLAR
Price unavailable
35
Yamaha Motors
Screw with Washer90159-06060-00
Required: 1
SCREW, WITH WASHER
Supersedes: 90159-06033-00
$8.07
You save $1.42
36
Yamaha Motors
Tapping Screw97707-40014-00
Required: 3
SCREW, TAPPING
Supersedes: 97702-40014-00
$7.22
You save $1.27
37
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
38
Required: 1
COVER 1
Price unavailable
39
Yamaha Motors
Screw with Washer90159-06060-00
Required: 3
SCREW, WITH WASHER
Supersedes: 90159-06033-00
$8.07
You save $1.42
40
Required: 2
SCREW, ROUND TAPPING
Price unavailable
41
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
42
Required: 1
COVER 2
Price unavailable
43
Required: 2
SCREW, ROUND TAPPING
Price unavailable
44
Required: 1
LABEL, WARNING
Price unavailable
45
Required: 1
TUNING FORK MARK
Price unavailable
46
Required: 2
TUNING FORK MARK
Price unavailable
47
Required: 1
GRAPHIC SET, PANEL FRONT
Price unavailable
48
Required: 1
GRAPHIC SET, PANEL 1
Price unavailable
49
Required: 1
GRAPHIC SET, PANEL 2
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
