All diagrams for this model

2018 Scooter T150 - T150 (2NDJ) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

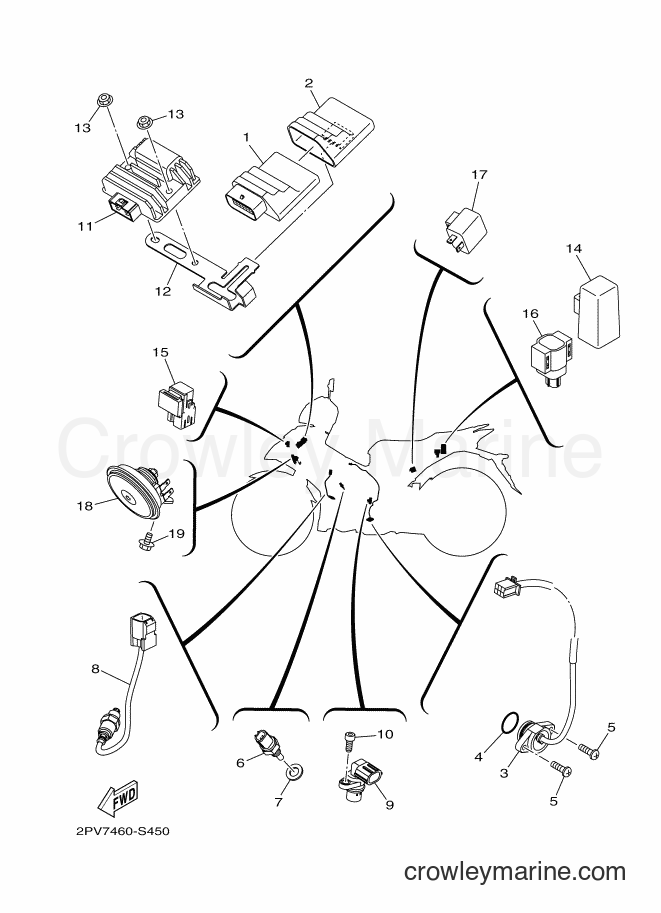

Yamaha Motors T150 (2NDJ) [010] - ELECTRICAL 2
Change View:
1
Required: 1
ENGINE CONTROL UNIT ASSY
Price unavailable
2
Required: 1
BAND
Price unavailable
3
Required: 1
NEUTRAL SWITCH ASSY
Price unavailable
4
Required: 1
O-RING
Price unavailable
6
Required: 1
THERMO UNIT
Price unavailable
Tank Cap Gasket
7
Yamaha Motors
Tank Cap Gasket90430-10802-00
Required: 1
GASKET
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details
8
Required: 1
SENSOR, OXYGEN
Price unavailable
9
Required: 1
SENSOR, SPEED
Price unavailable
BOLT
10
Yamaha Motors
BOLT91312-06014-00
Required: 1
BOLT, HEXAGON SOCKET HEAD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
11
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
12
Required: 1
BRACKET 1
Price unavailable
14
Required: 1
STARTER RELAY ASSY
Price unavailable
15
Required: 1
RELAY ASSY
Price unavailable
SENSOR, LEAN ANGLE
16
Yamaha Motors
SENSOR, LEAN ANGLE1PA-H2576-01-00
Required: 1
SENSOR, LEAN ANGLE
Supersedes: 1PA-H2576-00-00
Cross Ship
Leaves in 2-5 days
$29.99
$25.49
You save $4.50
More details
17
Required: 1
FLASHER RELAY ASSY
Price unavailable
18
Required: 1
HORN
Price unavailable
19
Required: 1
BOLT, FLANGE DEEP RECESS
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
