2018 Scooter T110LEC - T110LEC (B6A6) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

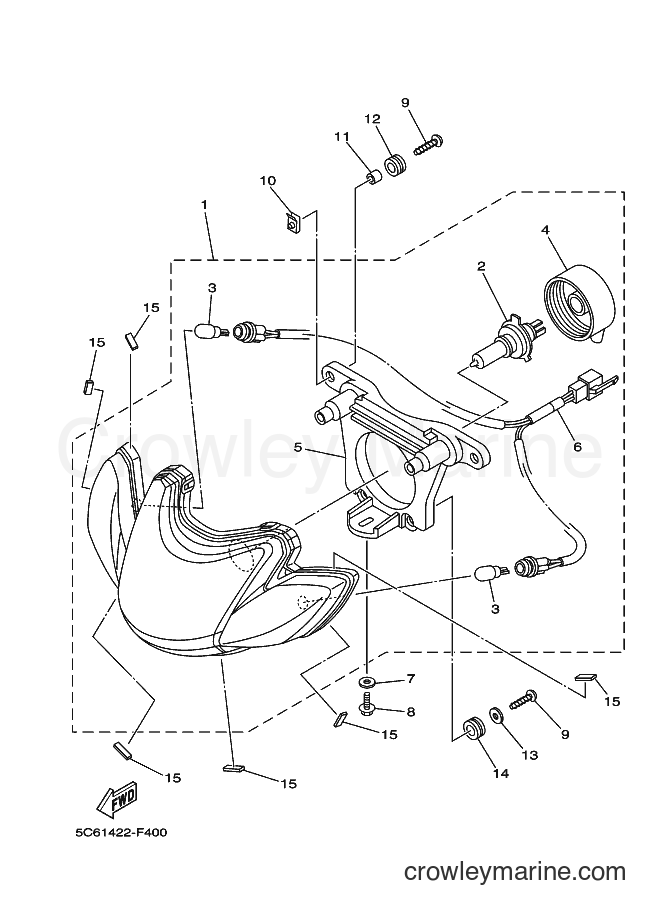

Yamaha Motors T110LEC (B6A6) [010] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT ASSY
Price unavailable
2
Required: 1
. BULB, HEADLIGHT (12V-35/35W)
Price unavailable
3
Required: 2
. BULB, FLASHER (12V-10W AMBER)
Price unavailable
4
Required: 1
. COVER, SOCKET
Price unavailable
5
Required: 1
. STAY, HEADLIGHT 1
Price unavailable
6
Required: 1
. CORD ASSY
Price unavailable
7
Required: 1
WASHER, PLATE
Price unavailable
8
Required: 1
BOLT, FLANGE DEEP RECESS
Price unavailable
Tapping Screw
9
Yamaha Motors
Tapping Screw97702-50016-00
Required: 4
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
COLLAR
11
Yamaha Motors
COLLAR90387-06761-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Grommet
12
Yamaha Motors
Grommet90480-13M24-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$9.05
$7.69
You save $1.36
More details
13
Required: 2
WASHER, PLATE
Price unavailable
Grommet
14
Yamaha Motors
Grommet90480-13018-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
15
Required: 6
DAMPER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
