All diagrams for this model

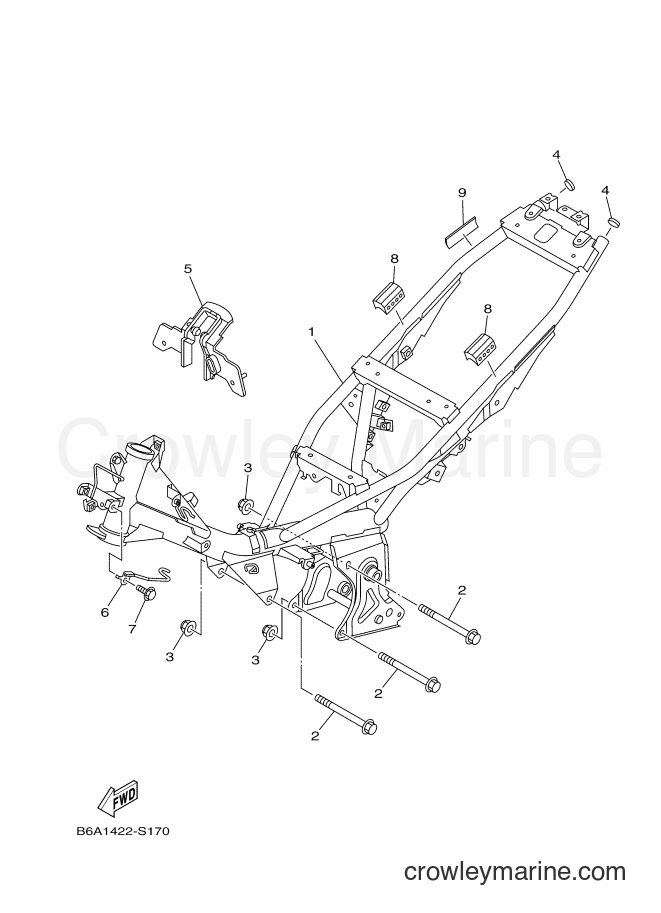

2018 Scooter T110LE - T110LE (B6A5) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T110LE (B6A5) [010] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
2
Required: 3
BOLT, FLANGE
Price unavailable
Self Locking Nut
3
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 3
NUT, SELF-LOCKING
Supersedes: 95607-08200-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
4
Required: 2
COVER 2
Price unavailable
5
Required: 1
COVER 4
Price unavailable
6
Required: 1
HOLDER, HARNESS
Price unavailable
95817-06010-00
7
Yamaha Motors
95817-06010-0095812-06010-00
Required: 1
BOLT, FLANGE
Supersedes: 95802-06010-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
8
Required: 2
DAMPER 2
Price unavailable
9
Required: 1
SEAL 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
