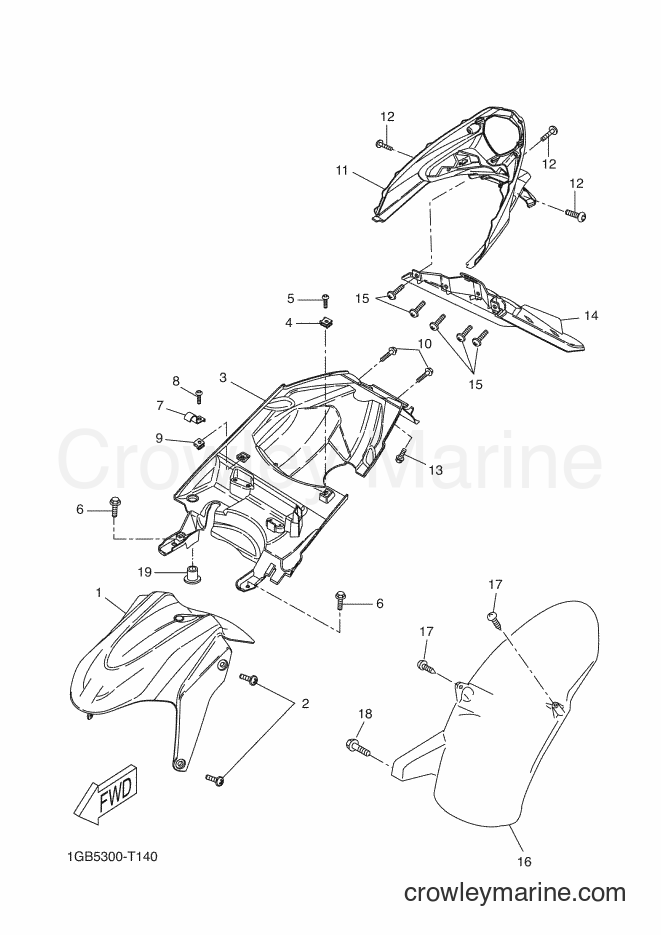

2018 Scooter NS50F - NS50F (1GB5) [050] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors NS50F (1GB5) [050] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
BOLT
2
Yamaha Motors
BOLT90111-05011-00
Required: 4
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
3
Required: 1
GUARD, MUD
Price unavailable
4
Required: 1
NUT, SPRING
Price unavailable
BOLT,HEX. SOCKET BUT
5
Yamaha Motors
BOLT,HEX. SOCKET BUT90111-05021-00
Required: 1
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
BOLT
6
Yamaha Motors
BOLT90109-06220-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
7
Required: 1
HOOK
Price unavailable
BOLT,HEX. SOCKET BUT
8
Yamaha Motors
BOLT,HEX. SOCKET BUT90111-05021-00
Required: 1
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
9
Required: 1
NUT, SPRING
Price unavailable
BOLT
10
Yamaha Motors
BOLT90109-06220-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
11
Required: 1
BRACKET, LICENSE
Price unavailable
12
Required: 3
BOLT
Price unavailable
13
Required: 2
SCREW, TAPPING
Price unavailable
14
Required: 1
GUARD, FLAP
Price unavailable
15
Required: 5
SCREW, TAPPING
Price unavailable
16
Required: 1
FLAP
Price unavailable
17
Required: 2
SCREW, TAPPING
Price unavailable
BOLT
18
Yamaha Motors
BOLT90109-06220-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
Plug
19
Yamaha Motors
Plug90338-18176-00
Required: 1
PLUG
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
