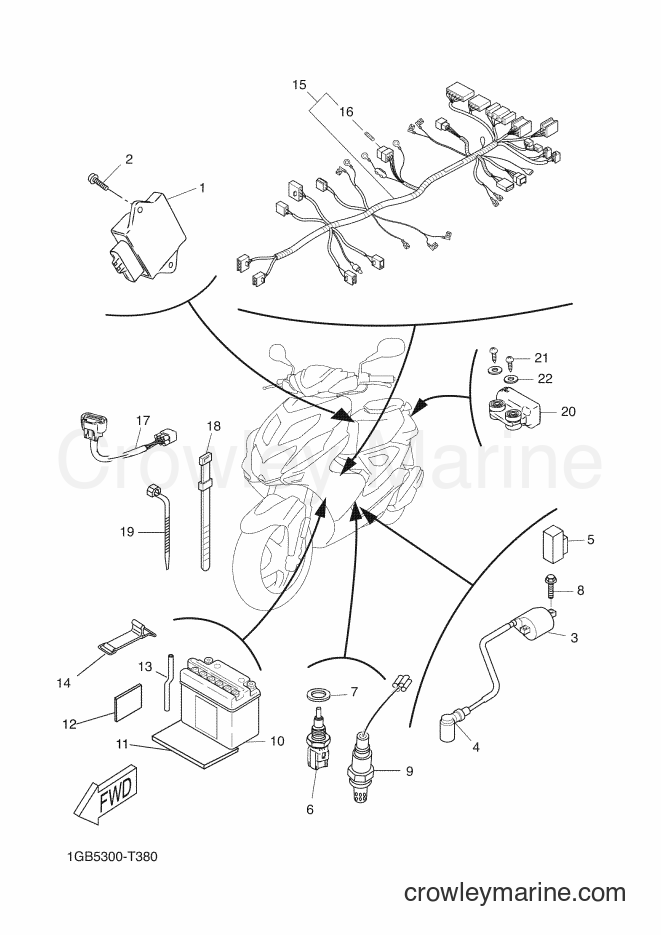

2018 Scooter NS50F - NS50F (1GB5) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors NS50F (1GB5) [010] - ELECTRICAL 2
Change View:
1
Required: 1
ENGINE CONTROL UNIT ASSY
Price unavailable
2
Required: 2
BOLT, WITH WASHER
Price unavailable
3
Required: 1
IGNITION COIL ASSY
Price unavailable
4
Required: 1
PLUG CAP ASSY
Price unavailable
5
Required: 1
STARTER RELAY ASSY
Price unavailable
6
Required: 1
THERMO UNIT
Price unavailable
Tank Cap Gasket
7
Yamaha Motors
Tank Cap Gasket90430-10004-00
Required: 1
GASKET
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
Hexagon Screw
8
Yamaha Motors
Hexagon Screw90153-06034-00
Required: 2
SCREW, HEXAGON
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
9
Required: 1
SENSOR, OXYGEN
Price unavailable
10
Required: 1
BATTERY ASSY (GS CB5L-B)
Price unavailable
11
Required: 1
DAMPER, LOCATING 1
Price unavailable
12
Required: 1
DAMPER, PLATE
Price unavailable
13
Required: 1
PIPE, BREATHER
Price unavailable
14
Required: 1
BAND, BATTERY
Price unavailable
15
Required: 1
WIRE HARNESS ASSY
Price unavailable
Fuse (15A)
16
Yamaha Motors
Fuse (15A)5ML-H2151-10-00
Required: 1
. FUSE (15A)
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
17
Required: 1
WIRE, SUB LEAD
Price unavailable
Switch Cord Band
18
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 8
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Clamp
19
Yamaha Motors
Clamp90464-31827-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$3.70
$3.15
You save $0.56
More details
SENSOR, LEAN ANGLE
20
Yamaha Motors
SENSOR, LEAN ANGLE5PS-82576-02-00
Required: 1
SENSOR, LEAN ANGLE
Supersedes: 5PS-82576-01-00
Cross Ship
Leaves in 2-5 days
$96.99
$82.44
You save $14.55
More details
21
Required: 2
SCREW, TAPPING
Price unavailable
Plate Washer
22
Yamaha Motors
Plate Washer90201-047A2-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$4.00
$3.40
You save $0.60
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
