All diagrams for this model

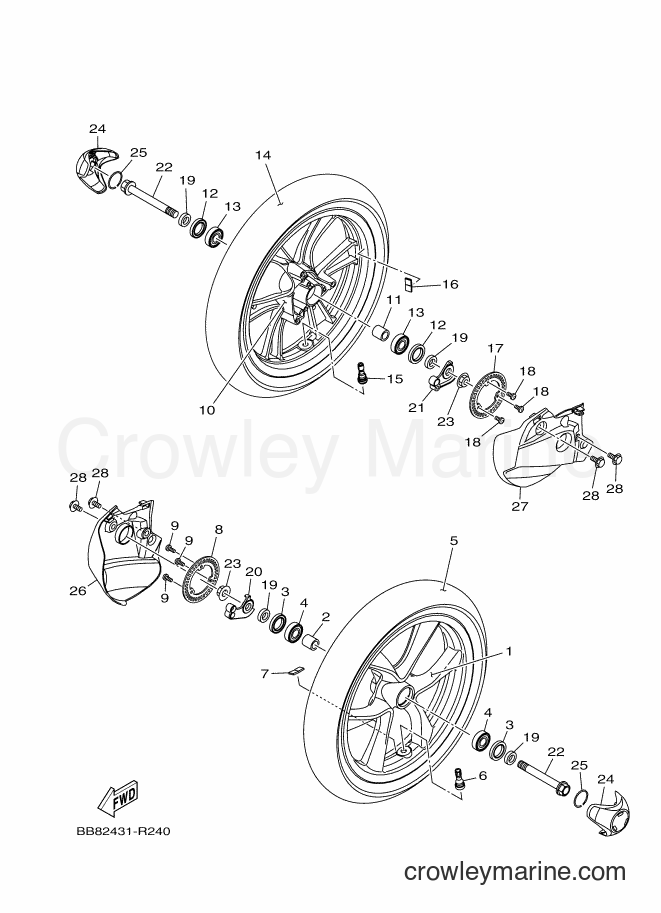

2018 Scooter MWS125-A - MWS125-A (BR77) [010] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors MWS125-A (BR77) [010] - FRONT WHEEL
Change View:
1
Required: 1
CAST WHEEL, FRONT
Price unavailable
2
Required: 1
SPACER, BEARING
Price unavailable
3
Required: 2
OIL SEAL
Price unavailable
4
Required: 2
BEARING
Price unavailable
5
Required: 1
TIRE (IRC, 90/80-14 M/C 43P)
Price unavailable
6
Required: 1
VALVE, RIM
Price unavailable
7
Required: 1
BALANCER, WHEEL (10G)
Price unavailable
7
Required: 1
BALANCER, WHEEL (20G)
Price unavailable
Rotor Sensor
8
Yamaha Motors
Rotor Sensor2DP-F517G-00-00
Required: 1
ROTOR, SENSOR
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
Screw (M8 X 40)
9
Yamaha Motors
Screw (M8 X 40)90149-05030-00
Required: 3
SCREW
Cross Ship
Leaves in 2-5 days
$2.80
$2.38
You save $0.42
More details
10
Required: 1
CAST WHEEL, FRONT
Price unavailable
11
Required: 1
SPACER, BEARING
Price unavailable
12
Required: 2
OIL SEAL
Price unavailable
13
Required: 2
BEARING
Price unavailable
14
Required: 1
TIRE (IRC, 90/80-14 M/C 43P)
Price unavailable
15
Required: 1
VALVE, RIM
Price unavailable
16
Required: 1
BALANCER, WHEEL (20G)
Price unavailable
16
Required: 1
BALANCER, WHEEL (10G)
Price unavailable
Rotor Sensor
17
Yamaha Motors
Rotor Sensor2DP-F517G-00-00
Required: 1
ROTOR, SENSOR
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
Screw (M8 X 40)
18
Yamaha Motors
Screw (M8 X 40)90149-05030-00
Required: 3
SCREW
Cross Ship
Leaves in 2-5 days
$2.80
$2.38
You save $0.42
More details
19
Required: 4
COLLAR
Price unavailable
20
Required: 1
HOUSING, SENSOR FRONT
Price unavailable
21
Required: 1
HOUSING, SENSOR FRONT
Price unavailable
22
Required: 2
AXLE, WHEEL
Price unavailable
23
Required: 2
NUT, SELF-LOCKING
Price unavailable
24
Required: 2
CAP, WHEEL
Price unavailable
25
Required: 2
CIRCLIP
Price unavailable
26
Required: 1
RING, WHEEL 1
Price unavailable
27
Required: 1
RING, WHEEL 2
Price unavailable
BOLT
28
Yamaha Motors
BOLT90109-06887-00
Required: 4
BOLT
Cross Ship
Leaves in 2-5 days
$2.00
$1.70
You save $0.30
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
