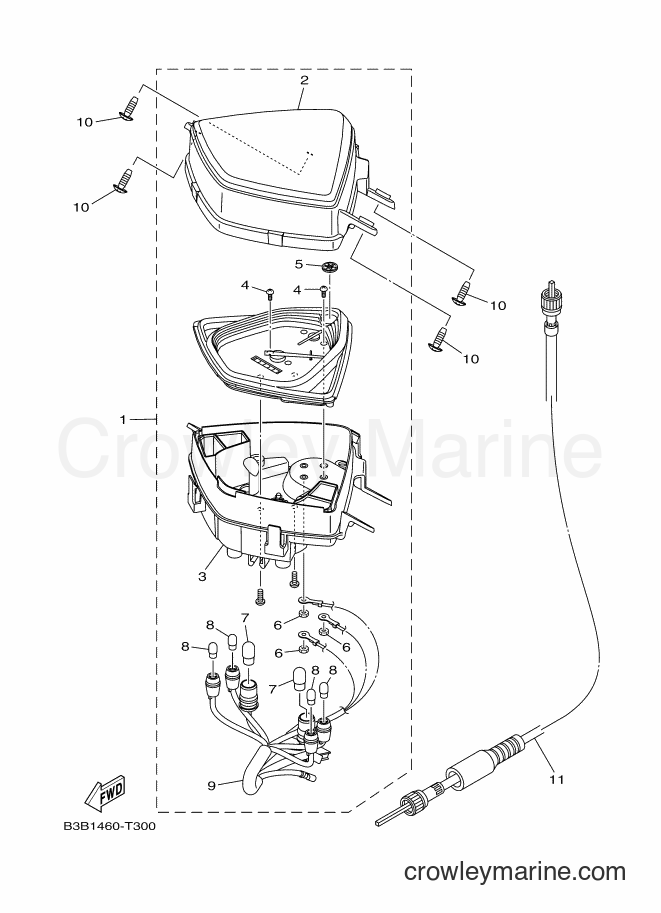

2018 Scooter LNY125 - LNY125 (B3B1) [010] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors LNY125 (B3B1) [010] - METER
Change View:
1
Required: 1
SPEEDOMETER ASSY
Price unavailable
2
Required: 1
. LENS, SPEEDOMETER
Price unavailable
3
Required: 1
. CASE, METER LOWER
Price unavailable
4
Required: 4
. SCREW, SPECIAL
Price unavailable
5
Required: 1
. EMBLEM
Price unavailable
6
Required: 3
. NUT
Price unavailable
Bulb
7
Yamaha Motors
Bulb3GF-H3517-00-00
Required: 2
. BULB (12V-1.7W)
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
BULB (12V-1.7W)
8
Yamaha Motors
BULB (12V-1.7W)5JS-H3517-00-00
Required: 4
. BULB (12V-1.7W T6.5)
Cross Ship
Leaves in 2-5 days
$2.40
$2.04
You save $0.36
More details
9
Required: 1
. SOCKET CORD ASSY
Price unavailable
11
Required: 1
SPEEDOMETER CABLE ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
