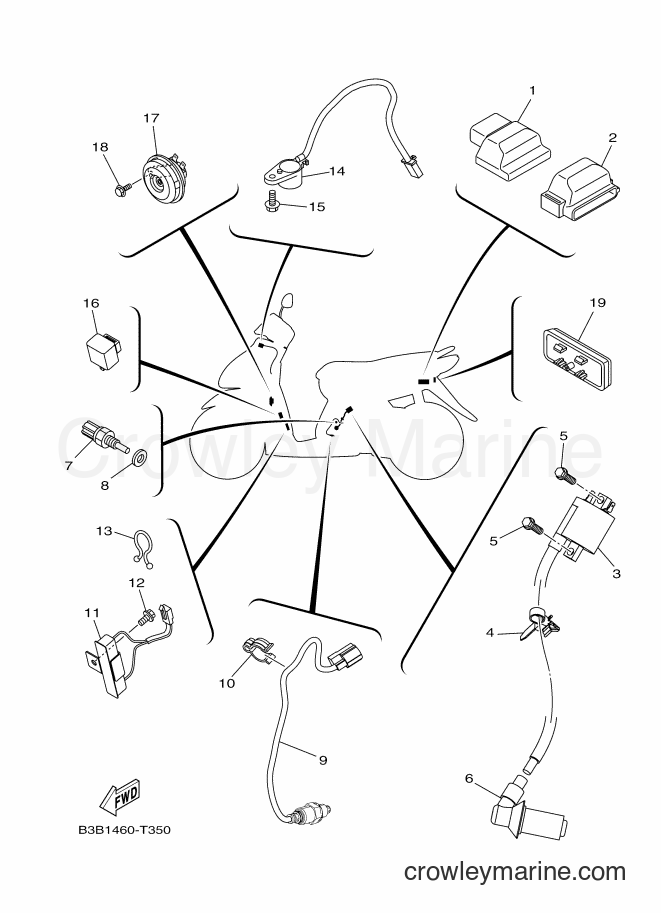

2018 Scooter LNY125 - LNY125 (B3B1) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors LNY125 (B3B1) [010] - ELECTRICAL 2
Change View:
1
Required: 1
ENGINE CONTROL UNIT ASSY
Price unavailable
2
Required: 1
BAND
Price unavailable
3
Required: 1
IGNITION COIL ASSY
Price unavailable
4
Required: 1
CLAMP
Price unavailable
6
Required: 1
PLUG CAP ASSY
Price unavailable
Thermostat Unit
7
Yamaha Motors
Thermostat Unit52B-H3591-00-00
Required: 1
THERMO UNIT
Supersedes: 54P-H3591-00-00
Cross Ship
Leaves in 2-5 days
$37.99
$32.29
You save $5.70
More details
8
Required: 1
GASKET
Price unavailable
9
Required: 1
SENSOR, OXYGEN
Price unavailable
10
Required: 1
CLAMP
Price unavailable
11
Required: 1
RESISTOR ASSY
Price unavailable
DEEP FLANGE BOLT
12
Yamaha Motors
DEEP FLANGE BOLT95E32-06010-00
Required: 1
BOLT, FLANGE DEEP RECESS
Cross Ship
Leaves in 2-5 days
$0.95
$0.81
You save $0.14
More details
13
Required: 1
CLAMP
Price unavailable
14
Required: 1
BUZZER
Price unavailable
Flasher Relay Assembly
16
Yamaha Motors
Flasher Relay Assembly3XV-83350-21-00
Required: 1
FLASHER RELAY ASSY
Cross Ship
Leaves in 2-5 days
$65.99
$56.09
You save $9.90
More details
17
Required: 1
HORN
Price unavailable
DEEP FLANGE BOLT
18
Yamaha Motors
DEEP FLANGE BOLT95D02-06010-00
Required: 1
BOLT, FLANGE DEEP RECESS
Cross Ship
Leaves in 2-5 days
$0.45
$0.38
You save $0.07
More details
19
Required: 1
REAR REFLECTOR ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
