2018 Scooter CZD300-A - CZD300-A (BY31) [060] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

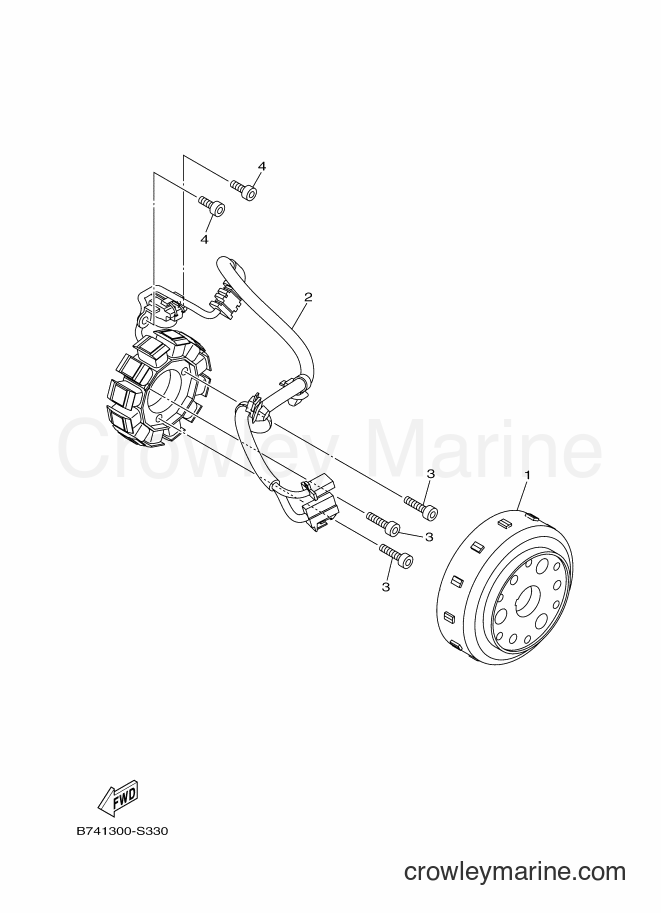

Yamaha Motors CZD300-A (BY31) [060] - GENERATOR
Change View:
Rotor Assembly
1
Yamaha Motors
Rotor AssemblyB74-H1450-00-00
Required: 1
ROTOR ASSY
Cross Ship
Leaves in 2-5 days
$213.99
$181.89
You save $32.10
More details
STATOR ASSY
2
Yamaha Motors
STATOR ASSYB74-H1410-01-00
Required: 1
STATOR ASSY
Supersedes: B74-H1410-00-00
Cross Ship
Leaves in 2-5 days
$92.99
$79.04
You save $13.95
More details
3
Required: 3
BOLT, HEXAGON SOCKET HEAD
Price unavailable
4
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
