2018 Scooter CEH50D - CEH50D (B3K2) [010] TRANSMISSION diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

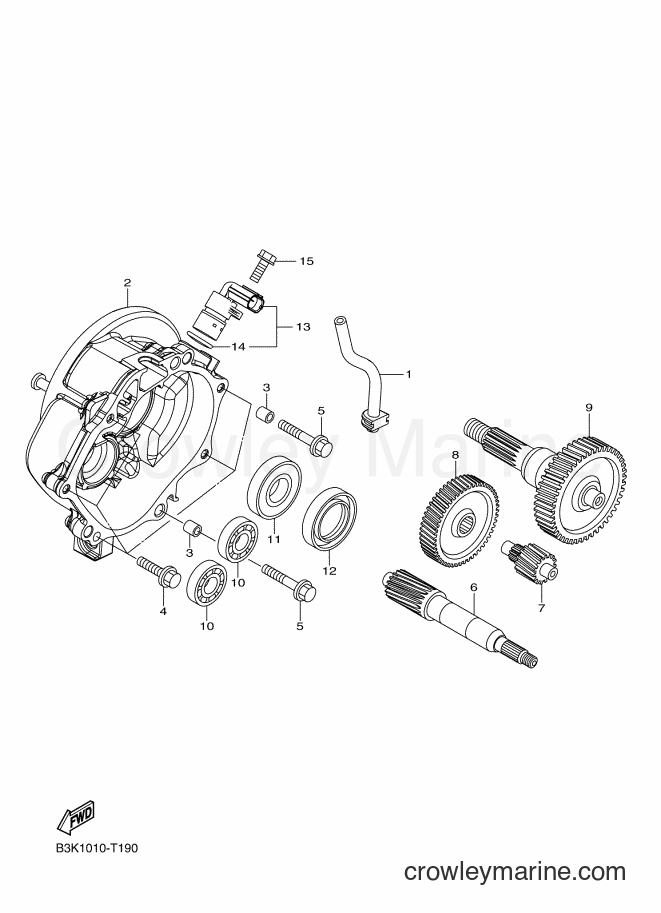

Yamaha Motors CEH50D (B3K2) [010] - TRANSMISSION
Change View:
1
Required: 1
TUBE
Price unavailable
2
Required: 1
CRANKCASE COVER ASSY 2
Price unavailable
3
Required: 2
PIN, DOWEL
Price unavailable
4
Required: 5
BOLT,FLG. M6X25
Price unavailable
5
Required: 2
BOLT, FLANGE
Price unavailable
6
Required: 1
GEAR, PRIMARY DRIVE
Price unavailable
7
Required: 1
AXLE, MAIN
Price unavailable
8
Required: 1
GEAR, PRIMARY DRIVEN
Price unavailable
9
Required: 1
DRIVE AXLE ASSY
Price unavailable
10
Required: 2
BEARING 1
Price unavailable
11
Required: 1
BEARING
Price unavailable
12
Required: 1
SEAL, OIL
Price unavailable
13
Required: 1
SENSOR, SPEED
Price unavailable
14
Required: 1
. O-RING, 2
Price unavailable
15
Required: 1
BOLT,FLG. M6X16
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
