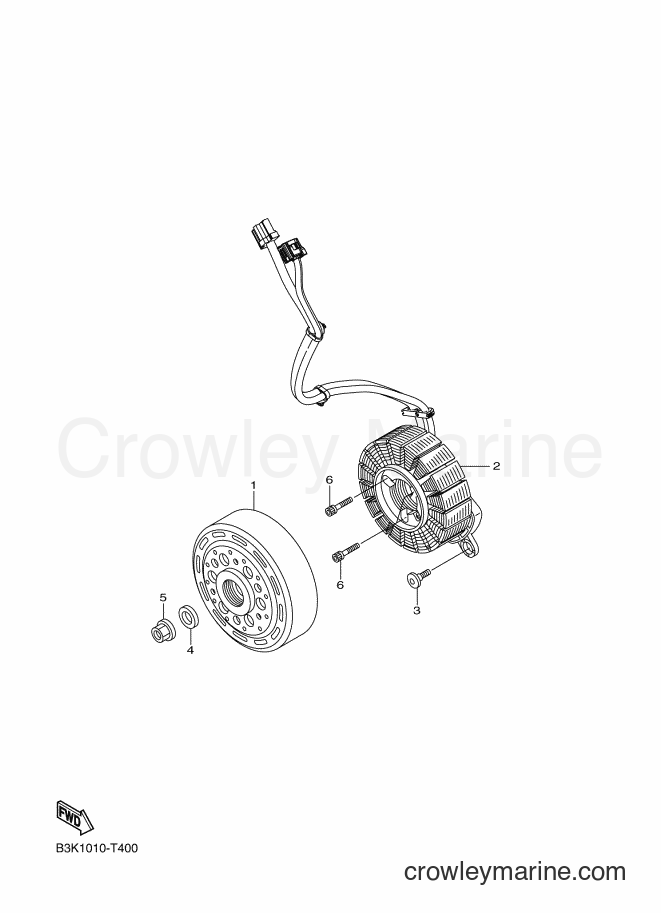

2018 Scooter CEH50D - CEH50D (B3K2) [010] STARTER GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CEH50D (B3K2) [010] - STARTER GENERATOR
Change View:
1
Required: 1
ROTOR ASSY
Price unavailable
2
Required: 1
STATOR ASSY
Price unavailable
3
Required: 1
BOLT
Price unavailable
4
Required: 1
WASHER, PLAIN
Price unavailable
5
Required: 1
NUT
Price unavailable
6
Required: 3
BOLT, HEX. SOCKET
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
