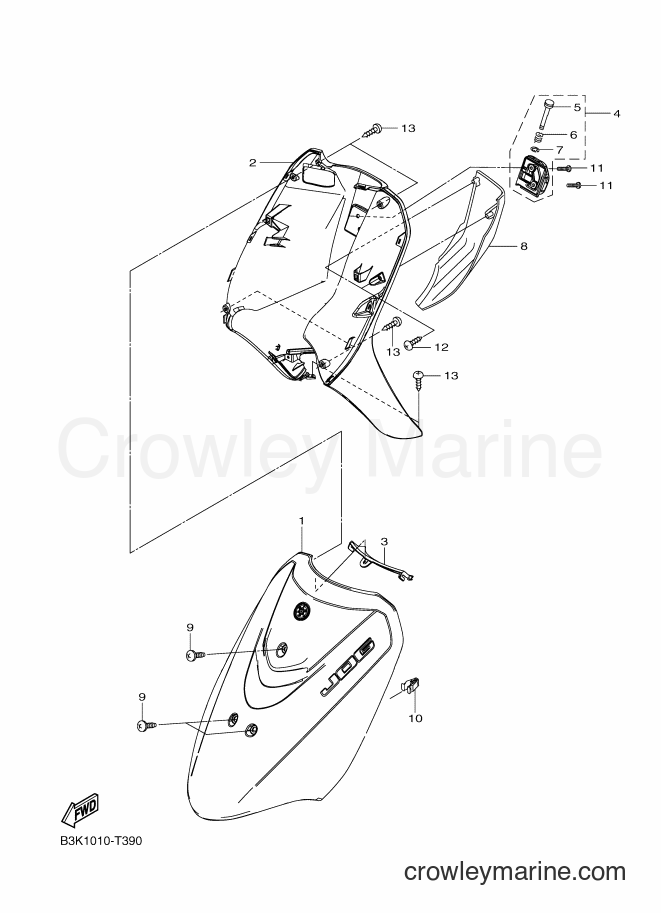

2018 Scooter CEH50D - CEH50D (B3K2) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CEH50D (B3K2) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
2
Required: 1
LEG SHIELD 2
Price unavailable
3
Required: 1
COVER
Price unavailable
4
Required: 1
HOOK
Price unavailable
5
Required: 1
. PIN, 1
Price unavailable
6
Required: 1
. SPRING, 1
Price unavailable
7
Required: 1
. CIRCLIP, 2
Price unavailable
8
Required: 1
PANEL, INNER 1
Price unavailable
9
Required: 3
SCREW
Price unavailable
10
Required: 2
CLIP, 2
Price unavailable
11
Required: 2
SCREW
Price unavailable
12
Required: 2
SCREW, TAPPING
Price unavailable
13
Required: 6
SCREW, TAPPING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
