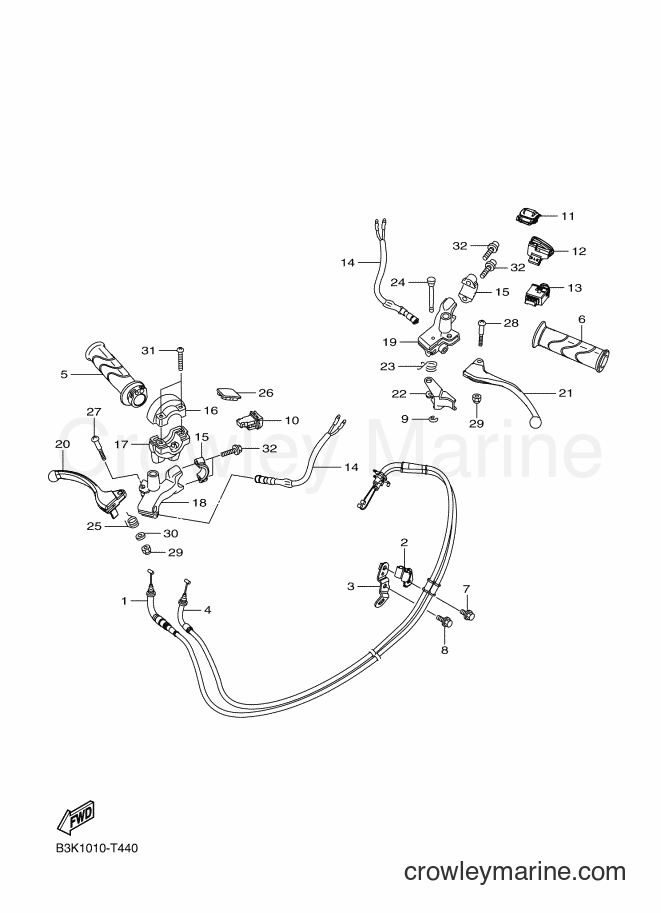

2018 Scooter CEH50 - CEH50 (B3K1) [010] HANDLE SWITCH & LEVER diagram
![Yamaha Motors CEH50 (B3K1) [010] - HANDLE SWITCH & LEVER](https://cdn.crowleymarine.com/yamaha/d7AxZwEB.png)
1
Required: 1
CABLE, THROTTLE 1
Price unavailable
2
Required: 1
CLAMP, WIRE
Price unavailable
3
Required: 1
GUIDE, CABLE
Price unavailable
4
Required: 1
CABLE, THROTTLE 2
Price unavailable
5
Required: 1
GRIP ASSY
Price unavailable
6
Required: 1
GRIP
Price unavailable
7
Required: 1
BOLT, FLANGE
Price unavailable
8
Required: 1
BOLT,FLG. M6X14
Price unavailable
9
Required: 1
CIRCLIP, 1
Price unavailable
10
Required: 1
STARTER SWITCH COMP.
Price unavailable
11
Required: 1
DIMMER SWITCH COMP.
Price unavailable
12
Required: 1
SWITCH
Price unavailable
13
Required: 1
FLASHER SW. COMP.
Price unavailable
14
Required: 2
STOP SWITCH ASSY
Price unavailable
15
Required: 2
BRACKET, MASTER CYLINDER
Price unavailable
16
Required: 1
CAP, GRIP UPPER
Price unavailable
17
Required: 1
CAP, GRIP UNDER
Price unavailable
18
Required: 1
LEVER HOLDER ASSY 2
Price unavailable
19
Required: 1
LEVER HOLDER ASSY 1
Price unavailable
20
Required: 1
LEVER 2
Price unavailable
21
Required: 1
LEVER 1
Price unavailable
22
Required: 1
BRAKE KEVER KIT
Price unavailable
23
Required: 1
SPRING, LEVER
Price unavailable
24
Required: 1
PIN, LEVER PIVOT
Price unavailable
25
Required: 1
SPRING, LEVER
Price unavailable
26
Required: 1
CAP, SWITCH
Price unavailable
27
Required: 1
SCREW, LEVER FITTING
Price unavailable
28
Required: 1
SCREW, LEVER FITTING
Price unavailable
29
Required: 2
NUT, HEXAGON
Price unavailable
30
Required: 1
WASHER, PLAIN
Price unavailable
31
Required: 2
SCREW
Price unavailable
32
Required: 4
BOLT, FLANGE
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
