2018 Scooter CEH50 - CEH50 (B3K1) [010] FRONT FORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

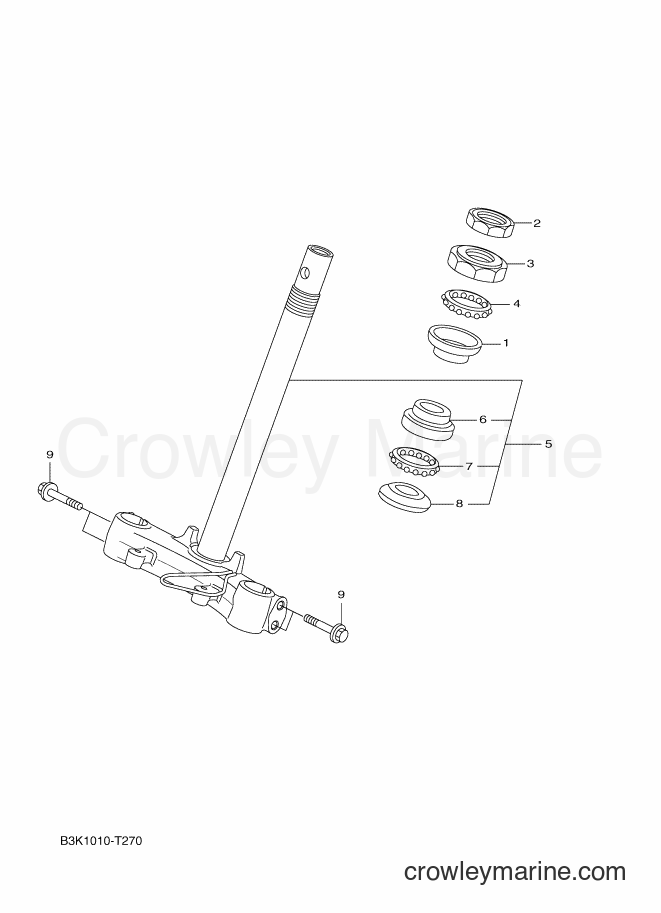

Yamaha Motors CEH50 (B3K1) [010] - FRONT FORK
Change View:
1
Required: 1
RACE, BALL 2
Price unavailable
2
Required: 1
NUT
Price unavailable
3
Required: 1
RACE, BALL 1
Price unavailable
4
Required: 1
RETAINER, BALL BEARING
Price unavailable
5
Required: 1
UNDER BRACKET COMP.
Price unavailable
6
Required: 1
. RACE, BALL 3
Price unavailable
7
Required: 1
. RETAINER, BALL BEARING
Price unavailable
8
Required: 1
. RACE, BALL 4
Price unavailable
9
Required: 4
BOLT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
