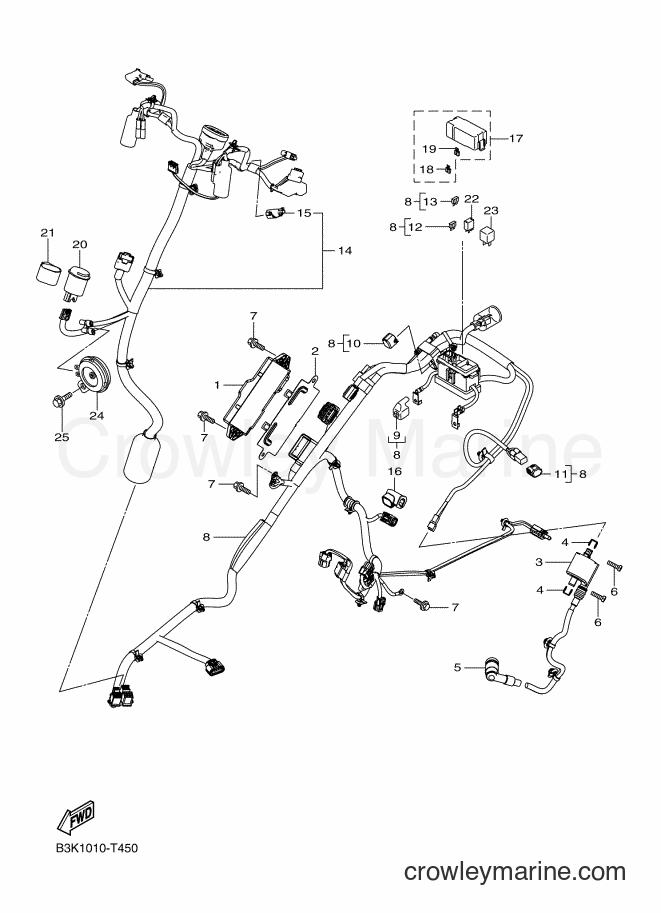

2018 Scooter CEH50 - CEH50 (B3K1) [010] ELECTRICAL 1 diagram
![Yamaha Motors CEH50 (B3K1) [010] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/EmsbonVU.png)
1
Required: 1
ENGINE CONTROL UNIT ASSY
Price unavailable
2
Required: 1
COVER,CASE ECU.
Price unavailable
3
Required: 1
IGNITION COIL ASSY
Price unavailable
4
Required: 2
COVER, IGNITION COIL
Price unavailable
5
Required: 1
PLUG CAP ASSY
Price unavailable
6
Required: 2
BOLT, HEXAGON
Price unavailable
7
Required: 4
BOLT,FLG. M6X14
Price unavailable
8
Required: 1
WIRE HARNESS ASSY
Price unavailable
9
Required: 1
. COVER, TERMINAL
Price unavailable
10
Required: 1
. CAP
Price unavailable
11
Required: 1
. CAP
Price unavailable
12
Required: 6
. FUSE
Price unavailable
13
Required: 1
. FUSE 1
Price unavailable
14
Required: 1
WIRE HARNESS ASSY 2
Price unavailable
15
Required: 1
. CAP
Price unavailable
16
Required: 1
COVER, SENSOR
Price unavailable
17
Required: 1
FUSE BOX ASSY
Price unavailable
18
Required: 1
. FUSE
Price unavailable
19
Required: 1
. FUSE 1
Price unavailable
20
Required: 1
RELAY
Price unavailable
21
Required: 1
HOLDER RELAY
Price unavailable
22
Required: 1
RELAY 2
Price unavailable
23
Required: 1
RELAY 3
Price unavailable
24
Required: 1
HORN
Price unavailable
25
Required: 1
BOLT, FLANGE
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
