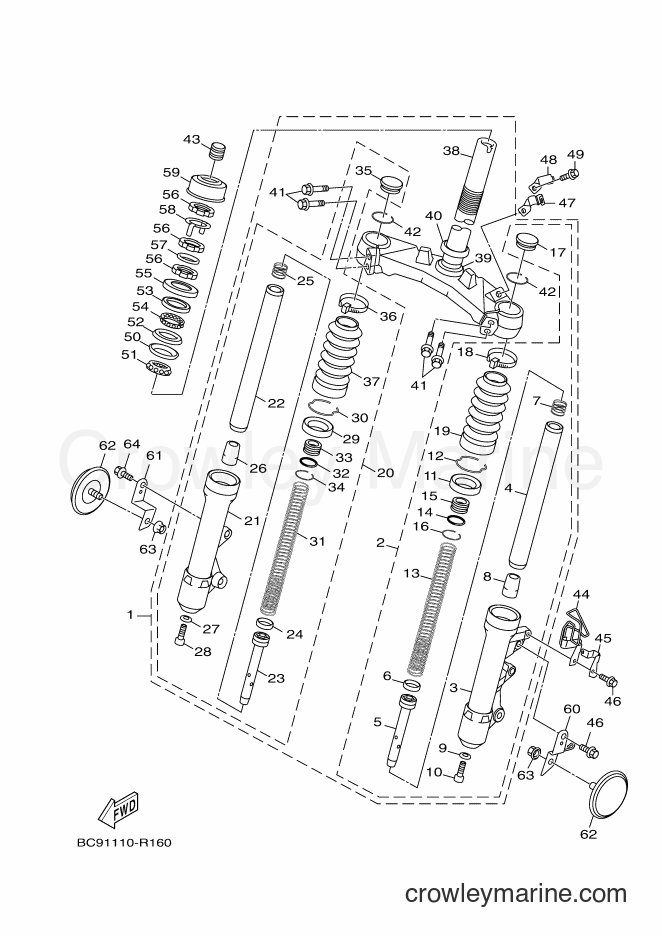

2017 Scooter YW125 - YW125 (BC94) [010] FRONT FORK diagram

1
Yamaha Motors
Front Fork Assembly2JS-F3100-00-00
Required: 1
FRONT FORK ASSY
$307.69
You save $54.30

2
Yamaha Motors
Front Left Fork Assembly2JS-F3102-00-00
Required: 1
. FRONT FORK ASSY (L.H)
$165.74
You save $29.25

3
Yamaha Motors
OUTER TUBE (LH)2JS-F3126-00-00
Required: 1
. . TUBE, OUTER (L.H)
$76.49
You save $13.50

4
Yamaha Motors
Inner Tube Comp2JS-F3110-00-00
Required: 1
. . INNER TUBE COMP.1
$39.09
You save $6.90

5
Yamaha Motors
Spring Upper Seat2JS-F3142-00-00
Required: 1
. . SEAT, SPRING UPPER
$11.89
You save $2.10

6
Yamaha Motors
Piston Ring4P9-F318X-00-00
Required: 1
. . PISTON RING
$1.96
You save $0.35

7
Yamaha Motors
Rebound Spring4C6-F3151-00-00
Required: 1
. . SPRING, REBOUND
$1.10
You save $0.20

8
Yamaha Motors
Front Fork Piston4P9-F3171-00-00
Required: 1
. . PISTON, FRONT FORK
$2.13
You save $0.38
$0.98
You save $0.17

10
Yamaha Motors
HEXAGON SOCKET BOLT4P9-F3181-00-00
Required: 1
. . BOLT, HEXAGON SOCKET HEAD
$1.66
You save $0.29
$9.77
You save $1.72

12
Yamaha Motors
PISTON RING4P9-F3157-00-00
Required: 1
. . RING, PISTON
$1.02
You save $0.18

13
Yamaha Motors
FRONT FORK SPRING2JS-F3141-00-00
Required: 1
. . SPRING, FRONT FORK
$6.79
You save $1.20
$0.55
You save $0.10
$2.98
You save $0.52

16
Yamaha Motors
FELT RING4P9-F3155-00-00
Required: 1
. . RING, FELT
$0.30
You save $0.05
$0.98
You save $0.17
$0.98
You save $0.17
$11.47
You save $2.02

20
Yamaha Motors
Front Right Fork Assembly2JS-F3103-00-00
Required: 1
. FRONT FORK ASSY (R.H)
$166.59
You save $29.40

21
Yamaha Motors
Outer Tube2JS-F3136-00-00
Required: 1
. . TUBE, OUTER 2
$77.34
You save $13.65

22
Yamaha Motors
Inner Tube Comp2JS-F3110-00-00
Required: 1
. . INNER TUBE COMP.1
$39.09
You save $6.90

23
Yamaha Motors
Spring Upper Seat2JS-F3142-00-00
Required: 1
. . SEAT, SPRING UPPER
$11.89
You save $2.10

24
Yamaha Motors
Piston Ring4P9-F318X-00-00
Required: 1
. . PISTON RING
$1.96
You save $0.35

25
Yamaha Motors
Rebound Spring4C6-F3151-00-00
Required: 1
. . SPRING, REBOUND
$1.10
You save $0.20

26
Yamaha Motors
Front Fork Piston4P9-F3171-00-00
Required: 1
. . PISTON, FRONT FORK
$2.13
You save $0.38
$0.98
You save $0.17

28
Yamaha Motors
HEXAGON SOCKET BOLT4P9-F3181-00-00
Required: 1
. . BOLT, HEXAGON SOCKET HEAD
$1.66
You save $0.29
$9.77
You save $1.72

30
Yamaha Motors
PISTON RING4P9-F3157-00-00
Required: 1
. . RING, PISTON
$1.02
You save $0.18

31
Yamaha Motors
FRONT FORK SPRING2JS-F3141-00-00
Required: 1
. . SPRING, FRONT FORK
$6.79
You save $1.20
$0.55
You save $0.10
$2.98
You save $0.52

34
Yamaha Motors
FELT RING4P9-F3155-00-00
Required: 1
. . RING, FELT
$0.30
You save $0.05
$0.98
You save $0.17
$0.98
You save $0.17
$11.47
You save $2.02

38
Yamaha Motors
Under Bracket Comp2JS-F3340-00-00
Required: 1
. UNDER BRACKET COMP.
$151.29
You save $26.70
$2.00
You save $0.35

40
Yamaha Motors
BALL RACE4C6-F3411-10-00
Required: 1
. RACE, BALL 1
$5.52
You save $0.97
$1.36
You save $0.24
$0.30
You save $0.05
$0.68
You save $0.12

44
Yamaha Motors
BRAKE HOSE HOLERBC9-F5875-00-00
Required: 1
HOLDER, BRAKE HOSE 1
$6.79
You save $1.20

45
Yamaha Motors
BRAKE HOSE HOLERBC9-F5875-10-00
Required: 1
HOLDER, BRAKE HOSE 1
$1.49
You save $0.26

46
Yamaha Motors
Flange Bolt95817-06014-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06014-00
In stock
Only 1 remaining
$2.38
You save $0.42

47
Yamaha Motors
BRAKE HOSE HOLER2JS-F5876-00-00
Required: 1
HOLDER, BRAKE HOSE 2
$3.61
You save $0.64

48
Yamaha Motors
BRAKE HOSE HOLER2JS-F5876-10-00
Required: 1
HOLDER, BRAKE HOSE 2
$2.00
You save $0.35

49
Yamaha Motors
Flange Bolt95817-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06012-00
In stock
5+ in stock
$1.66
You save $0.29
$4.67
You save $0.82

51
Yamaha Motors
BALL BEARING RETAINER4C6-F341E-00-00
Required: 1
RETAINER, BALL BEARING
$3.95
You save $0.70
$5.52
You save $0.97
$5.52
You save $0.97

54
Yamaha Motors
BALL BEARING RETAINER4C6-F341D-00-00
Required: 1
RETAINER, BALL BEARING 2
$3.95
You save $0.70

55
Yamaha Motors
Ball Race Cover 24C6-F3416-00-00
Required: 1
COVER, BALL RACE 2
$2.38
You save $0.42
$5.52
You save $0.97
57
Yamaha Motors
Plate Washer90202-26142-00
Required: 1
WASHER, PLATE
$8.92
You save $1.57

58
Yamaha Motors
Special Washer4VP-F3418-00-00
Required: 1
WASHER, SPECIAL
$1.78
You save $0.32

59
Yamaha Motors
Ball Race Cover41D-F3415-00-00
Required: 1
COVER, BALL RACE 1
$1.91
You save $0.34

60
Yamaha Motors
Reflector BracketBC9-H5112-00-00
Required: 1
BRACKET, REFLECTOR 1
In stock
Only 2 remaining
$5.09
You save $0.90

61
Yamaha Motors
Reflector BracketBC9-H5122-00-00
Required: 1
BRACKET, REFLECTOR 2
In stock
Only 2 remaining
$8.07
You save $1.42

62
Yamaha Motors
REFLECTOR, REAR 11CH-H5131-01-00
Required: 2
REFLECTOR, REAR 1
Supersedes: 1CH-H5131-00-00
$5.52
You save $0.97

63
Yamaha Motors
U Flange Nut95604-06200-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 95602-06200-00
$2.51
You save $0.44

64
Yamaha Motors
Flange Bolt95817-06014-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06014-00
In stock
Only 1 remaining
$2.38
You save $0.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
