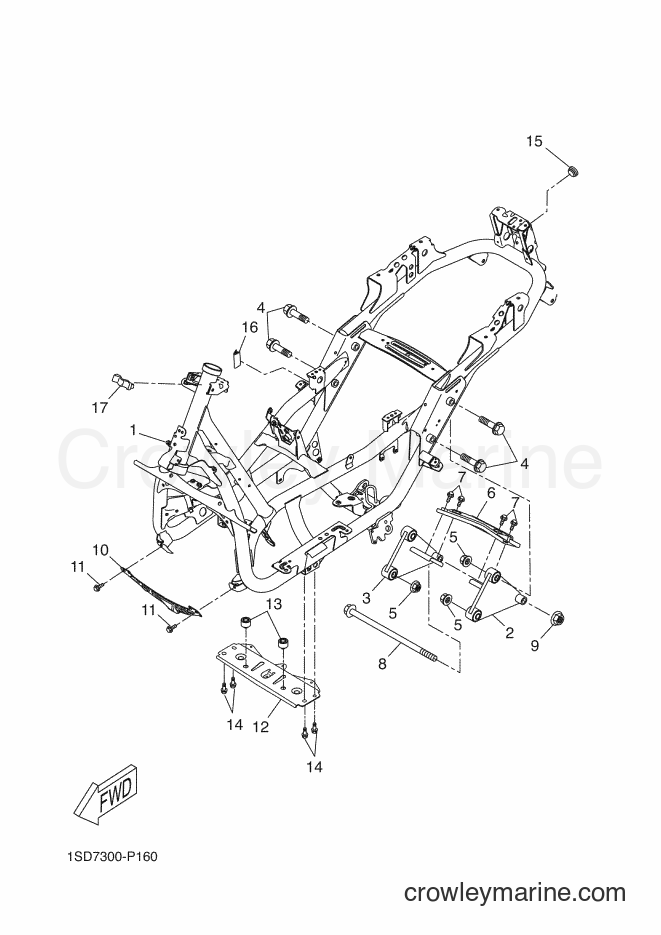

2017 Scooter YP400RA - YP400RA (1SDA) [030] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP400RA (1SDA) [030] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
2
Required: 1
ENGINE BRACKET COMP.
Price unavailable
3
Required: 1
ENGINE BRACKET COMP. 2
Price unavailable
4
Required: 4
BOLT, FLANGE
Price unavailable
Self-Locking Nut
5
Yamaha Motors
Self-Locking Nut90185-12072-00
Required: 4
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
6
Required: 1
BRACKET, ENGINE 1
Price unavailable
Flange Bolt
7
Yamaha Motors
Flange Bolt95812-10016-00
Required: 4
BOLT, FLANGE
Supersedes: 90105-10204-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
8
Required: 1
BOLT, ENGINE MOUNTING 1
Price unavailable
Self-Locking Nut
9
Yamaha Motors
Self-Locking Nut90185-12072-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
10
Required: 1
BRACKET, RADIATOR 3
Price unavailable
11
Required: 2
BOLT, FLANGE
Price unavailable
12
Required: 1
BRACKET, TANK FITTING
Price unavailable
13
Required: 2
PAD, SEAT
Price unavailable
14
Required: 4
BOLT, FLANGE
Price unavailable
Plug
15
Yamaha Motors
Plug90338-09130-00
Required: 1
PLUG
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
16
Required: 1
MOLE
Price unavailable
17
Required: 1
PROTECTOR
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
