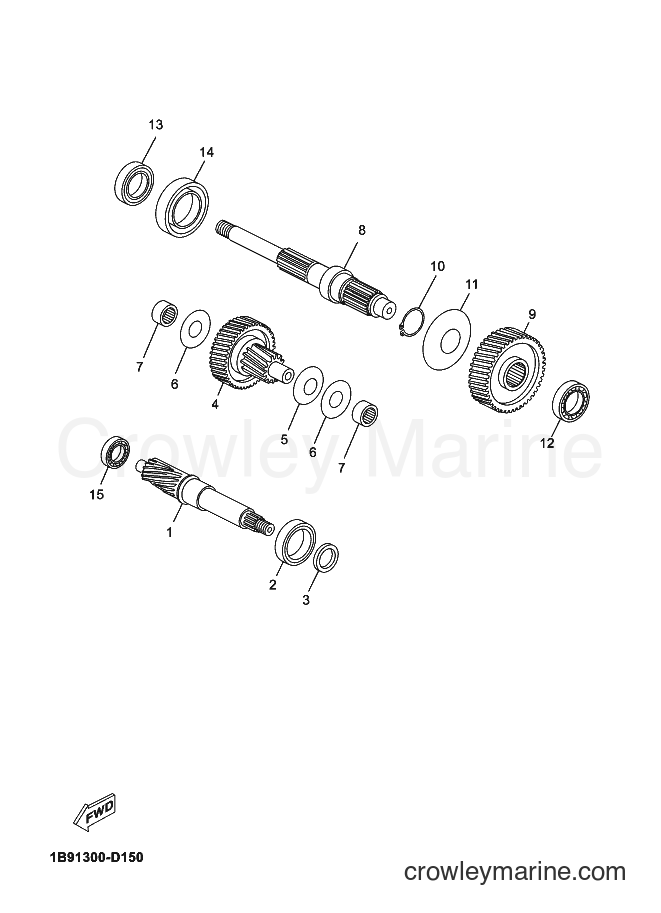

2017 Scooter YP125RA - YP125RA (2DMD) [040] TRANSMISSION diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP125RA (2DMD) [040] - TRANSMISSION
Change View:
1
Required: 1
GEAR, PRIMARY DRIVE
Price unavailable
2
Required: 1
BEARING
Price unavailable
3
Required: 1
OIL SEAL
Price unavailable
4
Required: 1
MAIN AXLE COMP.
Price unavailable
5
Required: 1
WASHER, CONICAL SPRING
Price unavailable
6
Required: 2
WASHER, PLATE
Price unavailable
7
Required: 2
BEARING
Price unavailable
8
Required: 1
AXLE, DRIVE
Price unavailable
9
Required: 1
GEAR, 1ST WHEEL
Price unavailable
10
Required: 1
CIRCLIP
Price unavailable
11
Required: 1
WASHER, CONICAL SPRING
Price unavailable
12
Required: 1
BEARING
Price unavailable
13
Required: 1
BEARING
Price unavailable
14
Required: 1
OIL SEAL
Price unavailable
15
Required: 1
BEARING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
