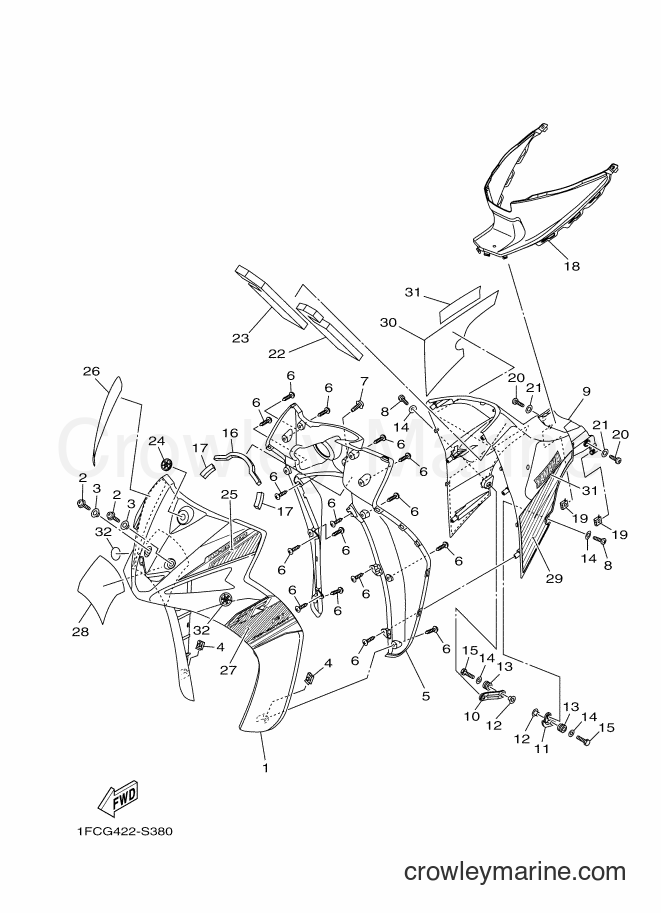

2017 Scooter T115FLSEC - T115FLSEC (1FCG) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T115FLSEC (1FCG) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
2
Required: 2
SCREW, WITH WASHER
Price unavailable
3
Required: 2
COLLAR
Price unavailable
5
Required: 1
LEG SHIELD 2
Price unavailable
Tapping Screw
6
Yamaha Motors
Tapping Screw97702-50016-00
Required: 16
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
7
Required: 1
SCREW, WITH WASHER
Price unavailable
Bind Screw
8
Yamaha Motors
Bind Screw98980-06020-00
Required: 2
SCREW, BIND
Supersedes: 98902-06020-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
9
Required: 1
COVER 1
Price unavailable
10
Required: 1
STAY 1
Price unavailable
11
Required: 1
STAY 2
Price unavailable
12
Required: 2
COLLAR
Price unavailable
13
Required: 2
GROMMET
Price unavailable
Plain Washer
14
Yamaha Motors
Plain Washer90201-06078-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
BOLT
15
Yamaha Motors
BOLT97011-06020-00
Required: 2
BOLT
Supersedes: 97002-06020-00
Cross Ship
Leaves in 2-5 days
$0.95
$0.81
You save $0.14
More details
16
Required: 1
DAMPER, PLATE
Price unavailable
17
Required: 2
DAMPER, PLATE
Price unavailable
18
Required: 1
COVER 2 (0033,YB)
Price unavailable
Bind Screw
20
Yamaha Motors
Bind Screw98980-06020-00
Required: 2
SCREW, BIND
Supersedes: 98902-06020-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plain Washer
21
Yamaha Motors
Plain Washer90201-06078-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
22
Required: 1
DAMPER, LOCATING 1
Price unavailable
23
Required: 1
DAMPER, LOCATING 2
Price unavailable
24
Required: 1
TUNING FORK MARK
Price unavailable
25
Required: 1
GRAPHIC 43
Price unavailable
26
Required: 1
GRAPHIC 44
Price unavailable
27
Required: 1
GRAPHIC 45
Price unavailable
28
Required: 1
GRAPHIC 46
Price unavailable
29
Required: 1
GRAPHIC 47
Price unavailable
30
Required: 1
GRAPHIC 48
Price unavailable
YAMAHA EMBLEM
31
Yamaha Motors
YAMAHA EMBLEM99247-00120-00
Required: 2
EMBLEM, YAMAHA
Supersedes: 99237-00120-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
32
Required: 2
TUNING FORK MARK
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
