2017 Scooter T110LEC - T110LEC (B6A3) [010] SIDE COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

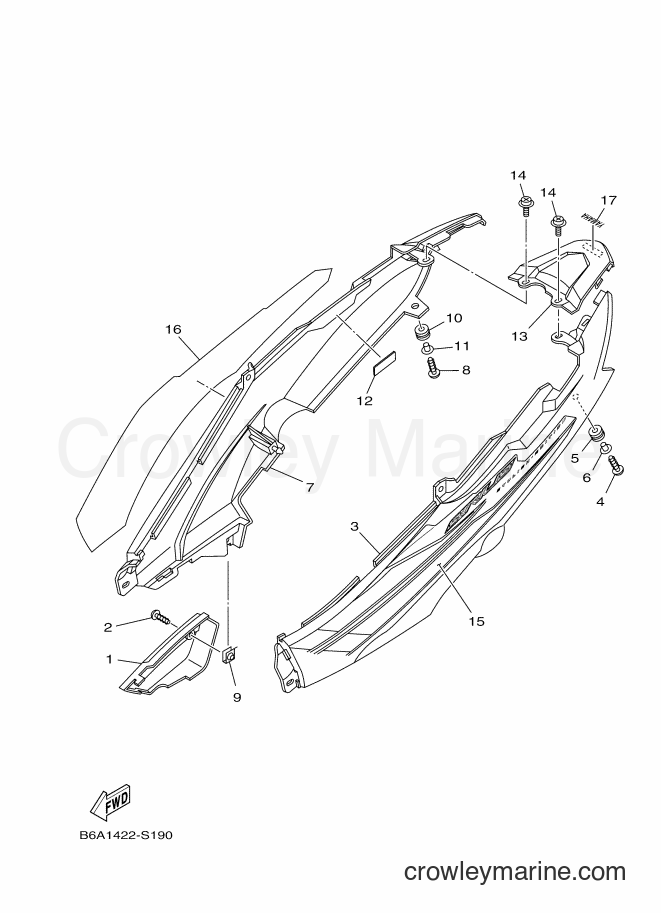

Yamaha Motors T110LEC (B6A3) [010] - SIDE COVER
Change View:
1
Required: 1
COVER, SIDE 2
Price unavailable
Truss Screw
2
Yamaha Motors
Truss Screw97707-50014-00
Required: 1
SCREW, TAPPING
Supersedes: 97702-50014-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
3
Required: 1
COVER, SIDE 3
Price unavailable
Tapping Screw
4
Yamaha Motors
Tapping Screw90167-05078-00
Required: 1
SCREW, TAPPING
Supersedes: 97702-50020-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
GROMMET (3P91)
5
Yamaha Motors
GROMMET (3P91)90480-12808-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$2.45
$2.08
You save $0.37
More details
6
Required: 1
COLLAR
Price unavailable
7
Required: 1
COVER, SIDE 4
Price unavailable
Tapping Screw
8
Yamaha Motors
Tapping Screw90167-05078-00
Required: 1
SCREW, TAPPING
Supersedes: 97702-50020-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
GROMMET (3P91)
10
Yamaha Motors
GROMMET (3P91)90480-12808-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$2.45
$2.08
You save $0.37
More details
11
Required: 1
COLLAR
Price unavailable
12
Required: 1
DAMPER, PLATE
Price unavailable
13
Required: 1
COVER, SIDE 5
Price unavailable
14
Required: 2
SCREW, WITH WASHER
Price unavailable
15
Required: 1
GRAPHIC 3
Price unavailable
16
Required: 1
GRAPHIC 4
Price unavailable
17
Required: 1
EMBLEM, YAMAHA
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
