2017 Scooter T110LEC - T110LEC (B6A3) [010] STEERING 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

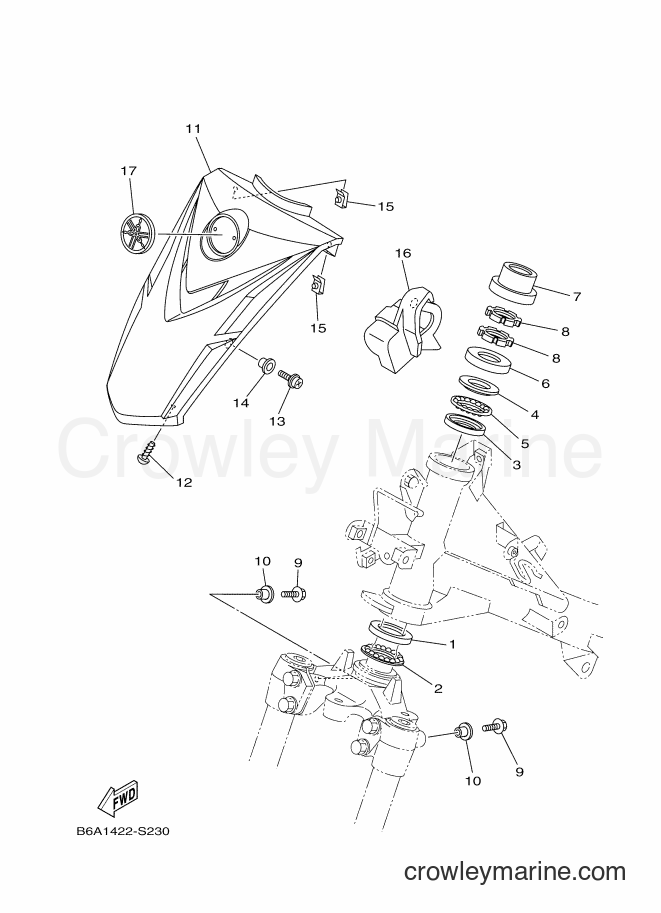

Yamaha Motors T110LEC (B6A3) [010] - STEERING 2
Change View:
1
Required: 1
RACE, BALL 2
Price unavailable
2
Required: 1
RETAINER, BALL BEARING
Price unavailable
3
Required: 1
RACE, BALL 2
Price unavailable
4
Required: 1
RACE, BALL 1
Price unavailable
5
Required: 1
RETAINER, BALL BEARING
Price unavailable
6
Required: 1
COVER, BALL RACE 2
Price unavailable
7
Required: 1
COVER, BALL RACE 1
Price unavailable
Nut
8
Yamaha Motors
Nut90179-25004-00
Required: 2
NUT
Supersedes: 90179-25002-00
Cross Ship
Leaves in 2-5 days
$26.99
$22.94
You save $4.05
More details
Flange Bolt
9
Yamaha Motors
Flange Bolt95022-06016-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details
COLLAR
10
Yamaha Motors
COLLAR90387-06857-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$1.25
$1.06
You save $0.19
More details
11
Required: 1
PANEL, FRONT
Price unavailable
Truss Screw
12
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
13
Required: 2
SCREW, WITH WASHER
Price unavailable
COLLAR
14
Yamaha Motors
COLLAR90387-062M9-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
16
Required: 1
PROTECTOR
Price unavailable
17
Required: 1
TUNING FORK MARK
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
