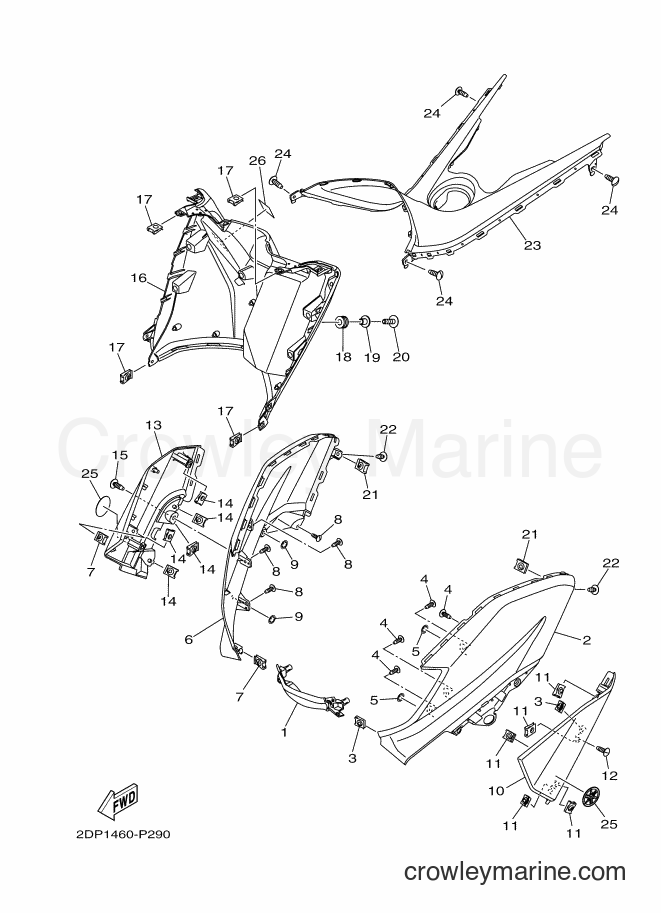

2017 Scooter GPD150-A - GPD150-A (BV41) [050] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors GPD150-A (BV41) [050] - LEG SHIELD
Change View:
1
Required: 1
COVER, FRONT 2
Price unavailable
2
Required: 1
BODY, COWLING
Price unavailable
Tapping Screw
4
Yamaha Motors
Tapping Screw97702-50016-00
Required: 4
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
Spring Nut
5
Yamaha Motors
Spring Nut90183-06008-00
Required: 2
NUT, SPRING
Supersedes: 90183-06815-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
6
Required: 1
BODY, COWLING 2
Price unavailable
Tapping Screw
8
Yamaha Motors
Tapping Screw97702-50016-00
Required: 4
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
Spring Nut
9
Yamaha Motors
Spring Nut90183-06008-00
Required: 2
NUT, SPRING
Supersedes: 90183-06815-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
10
Required: 1
PANEL 1
Price unavailable
Tapping Screw
12
Yamaha Motors
Tapping Screw97702-50016-00
Required: 1
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
13
Required: 1
PANEL 2
Price unavailable
Tapping Screw
15
Yamaha Motors
Tapping Screw97702-50016-00
Required: 1
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
16
Required: 1
LEG SHIELD ASSY
Price unavailable
GROMMET (3P91)
18
Yamaha Motors
GROMMET (3P91)90480-12808-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$2.45
$2.08
You save $0.37
More details
COLLAR
19
Yamaha Motors
COLLAR90387-06899-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$3.50
$2.98
You save $0.52
More details
20
Required: 1
BOLT,HEX. SOCKET BUTTON
Price unavailable
23
Required: 1
COVER 1
Price unavailable
Tapping Screw
24
Yamaha Motors
Tapping Screw97702-50016-00
Required: 4
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
25
Required: 2
EMBLEM
Price unavailable
26
Required: 1
LABEL, WARNING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
