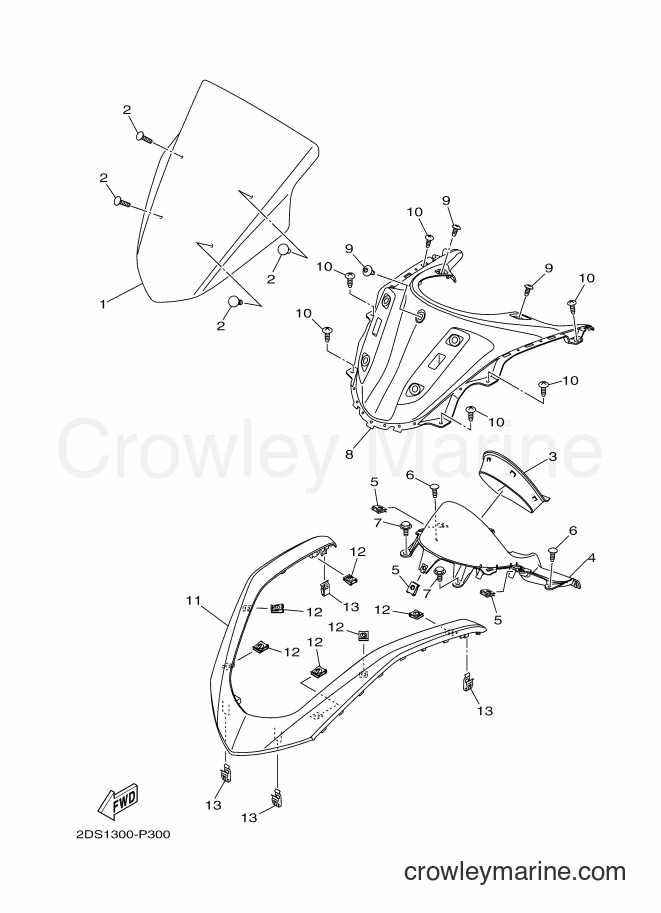

2017 Scooter GPD125-A - GPD125-A (BV32) [020] WINDSHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Yamaha Motors GPD125-A (BV32) [020] - WINDSHIELD

Change View:

Required: 1

VISOR

Price unavailable

Required: 4

SCREW, ROUND HEAD

Price unavailable

Required: 1

COVER, METER

Price unavailable

Required: 1

PANEL, CONSOLE 1

Price unavailable

Yamaha Motors

Spring Nut90183-05042-00

Required: 3

NUT, SPRING

Supersedes: 90183-05807-00

In stock

Only 1 remaining

~~$1.00~~

$0.85

You save $0.15

More details

Yamaha Motors

Tapping Screw97702-50016-00

Required: 2

SCREW, TAPPING

~~$2.60~~

$2.21

You save $0.39

More details

Yamaha Motors

Bolt with Washer90119-06051-00

Required: 2

BOLT, WITH WASHER

~~$9.49~~

$8.07

You save $1.42

More details

Required: 1

PANEL, CONSOLE 2

Price unavailable

Yamaha Motors

Round Tapping Screw90160-05808-00

Required: 3

SCREW, ROUND TAPPING

In stock

Only 1 remaining

~~$0.55~~

$0.47

You save $0.08

More details

Yamaha Motors

Tapping Screw97702-50016-00

Required: 6

SCREW, TAPPING

~~$2.60~~

$2.21

You save $0.39

More details

Required: 1

COVER, FRONT

Price unavailable

Yamaha Motors

Spring Nut90183-05042-00

Required: 6

NUT, SPRING

Supersedes: 90183-05807-00

In stock

Only 1 remaining

~~$1.00~~

$0.85

You save $0.15

More details

Yamaha Motors

Reverse Arm Hook44D-F8379-00-00

Required: 4

HOOK

~~$6.49~~

$5.52

You save $0.97

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
