All diagrams for this model

2017 Scooter GPD125-A - GPD125-A (BV31) [010] HANDLE SWITCH & LEVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

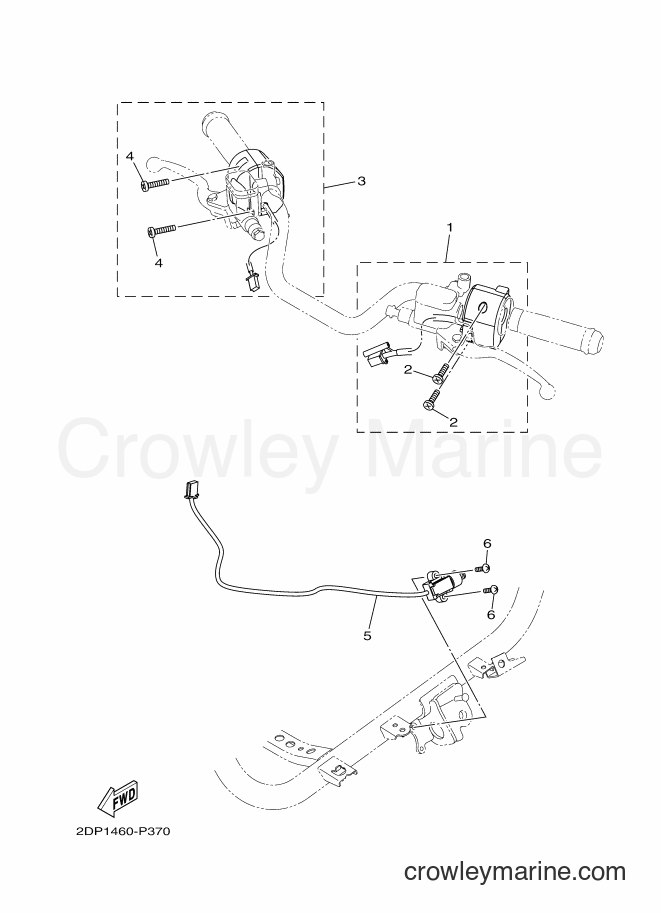

Yamaha Motors GPD125-A (BV31) [010] - HANDLE SWITCH & LEVER
Change View:
1
Required: 1
SWITCH, HANDLE 3
Price unavailable
Pan Head Screw
2
Yamaha Motors
Pan Head Screw98517-05030-00
Required: 2
. SCREW, PAN HEAD
Supersedes: 98507-05030-00
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
3
Required: 1
SWITCH, HANDLE 1
Price unavailable
Pan Head Screw
4
Yamaha Motors
Pan Head Screw98507-05025-00
Required: 2
. SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
5
Required: 1
SWITCH, SIDE STAND
Price unavailable
BOLT
6
Yamaha Motors
BOLT90111-05810-00
Required: 2
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$1.05
$0.89
You save $0.16
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
