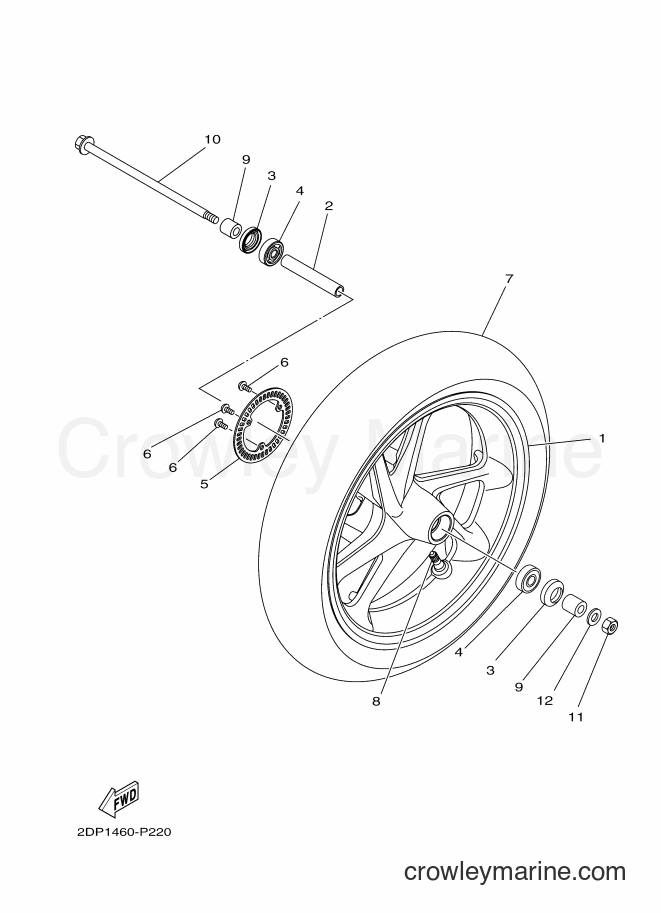

2017 Scooter GPD125-A - GPD125-A (BV31) [010] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors GPD125-A (BV31) [010] - FRONT WHEEL
Change View:
1
Required: 1
CAST WHEEL, FRONT
Price unavailable
2
Required: 1
COLLAR
Price unavailable
3
Required: 2
OIL SEAL
Price unavailable
4
Required: 2
BEARING
Price unavailable
Rotor Sensor
5
Yamaha Motors
Rotor Sensor2DP-F517G-00-00
Required: 1
ROTOR, SENSOR
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
Screw (M8 X 40)
6
Yamaha Motors
Screw (M8 X 40)90149-05030-00
Required: 3
SCREW
Supersedes: 90149-05029-00
Cross Ship
Leaves in 2-5 days
$2.80
$2.38
You save $0.42
More details
7
Required: 1
TIRE (110/70-13 M/C 48P)
Price unavailable
RIM VALVE
8
Yamaha Motors
RIM VALVE93900-00828-00
Required: 1
VALVE, RIM
Cross Ship
Leaves in 2-5 days
$4.95
$4.21
You save $0.74
More details
517 F. WHEEL COLLAR
9
Yamaha Motors
517 F. WHEEL COLLAR90387-10277-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
10
Required: 1
AXLE, WHEEL
Price unavailable
SELF-LOCKING NUT
11
Yamaha Motors
SELF-LOCKING NUT90185-10012-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$3.60
$3.06
You save $0.54
More details
12
Required: 1
WASHER, PLATE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
