All diagrams for this model

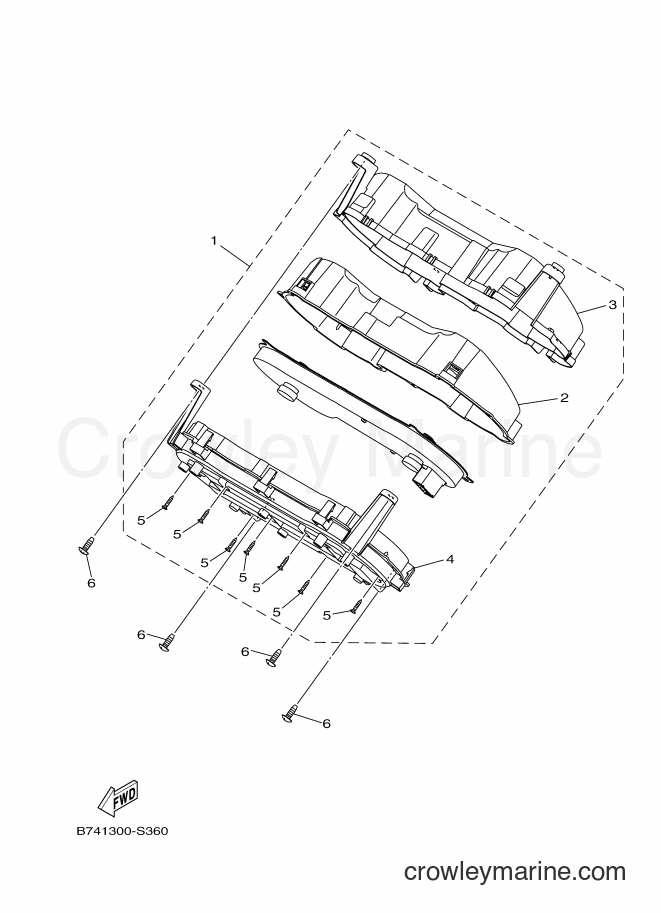

2017 Scooter CZD300-A - CZD300-A (B741) [050] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CZD300-A (B741) [050] - METER
Change View:
1
Required: 1
METER ASSY
Price unavailable
REFLECTOR
2
Yamaha Motors
REFLECTORB74-H353L-00-00
Required: 1
. REFLECTOR
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
Speedometer Lens
3
Yamaha Motors
Speedometer LensB74-H3511-00-00
Required: 1
. LENS, SPEEDOMETER
Cross Ship
Leaves in 2-5 days
$8.99
$7.64
You save $1.35
More details
SPEEDOMETER LOWER CASE
4
Yamaha Motors
SPEEDOMETER LOWER CASEB74-H3572-00-00
Required: 1
. CASE, SPEEDOMETER LOWER
Cross Ship
Leaves in 2-5 days
$7.99
$6.79
You save $1.20
More details
Tapping Screw
5
Yamaha Motors
Tapping Screw97702-30016-00
Required: 7
. SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
Tapping Screw
6
Yamaha Motors
Tapping Screw97702-50016-00
Required: 4
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
