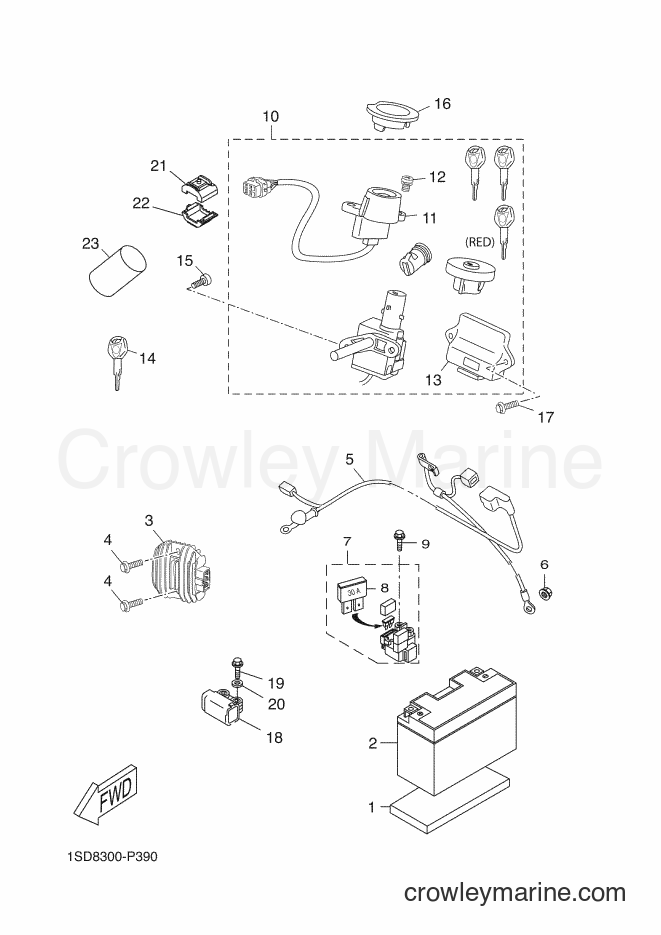

2016 Scooter YP400RA - YP400RA (1SDE) [060] ELECTRICAL 1 diagram
![Yamaha Motors YP400RA (1SDE) [060] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/VaOOX36h.png)
1
Required: 1
DAMPER
Price unavailable
2
Required: 1
BATTERY ASSY
Price unavailable
3
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
4
Required: 2
BOLT, FLANGE
Price unavailable
5
Required: 1
CORD, STARTER MOTOR
Price unavailable
$7.22
You save $1.27
7
Yamaha Motors
Starter Relay Assembly4SV-81940-12-00
Required: 1
STARTER RELAY ASSY (RC19-015)
$113.89
You save $20.10
8
Yamaha Motors
Fuse (30A-Bl)1AE-82151-00-00
Required: 2
. FUSE (30A-BL)
$7.22
You save $1.27
9
Required: 2
BOLT
Price unavailable
10
Required: 1
MAIN SW. IMMOBILIZER KIT
Price unavailable
11
Required: 1
. IMMOBILIZER. UNIT COMP.
Price unavailable
$8.07
You save $1.42
13
Required: 1
. ENGINE CONTROL UNIT ASSY
Price unavailable
14
Required: 1
BLANK KEY
Price unavailable
15
Required: 2
BOLT
Price unavailable
16
Required: 1
COVER
Price unavailable
17
Yamaha Motors
Flange Bolt95817-06012-00
Required: 2
BOLT, FLANGE
Supersedes: 95802-06012-00
In stock
5+ in stock
$1.66
You save $0.29
18
Yamaha Motors
Lean Angle Sensor32P-H2576-00-00
Required: 1
SENSOR, LEAN ANGLE
In stock
Only 1 remaining
$33.99
You save $6.00
19
Required: 2
BOLT
Price unavailable
20
Yamaha Motors
Plate Washer90201-047A2-00
Required: 2
WASHER, PLATE
$3.40
You save $0.60
21
Required: 1
HOUSING, CONNECTOR 1
Price unavailable
22
Required: 1
HOUSING, CONNECTOR 2
Price unavailable
23
Required: 1
CASE COMP, UNDER
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
