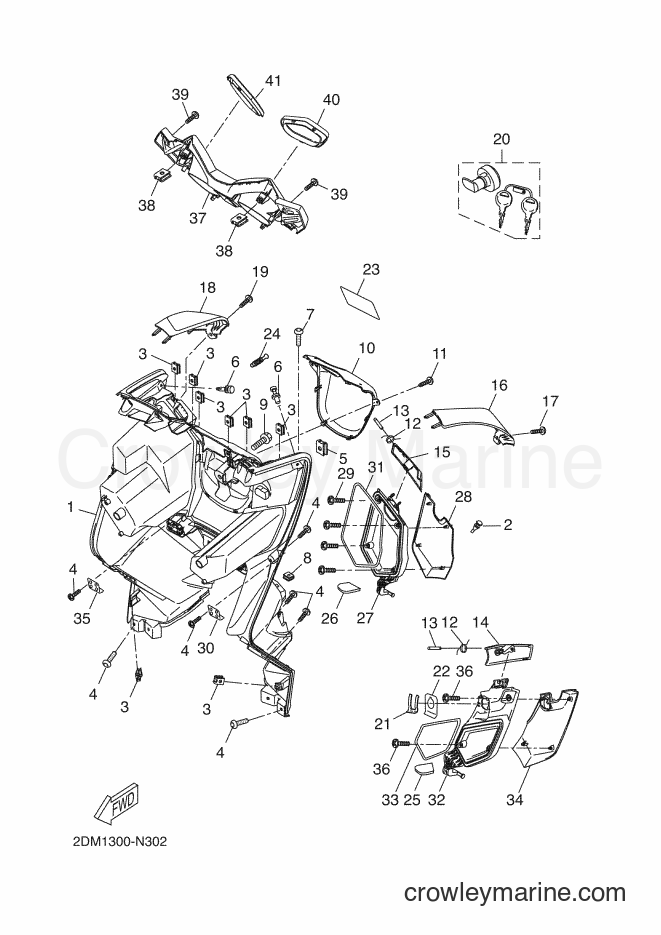

2016 Scooter YP400RA - YP400RA (1SDC) [050] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP400RA (1SDC) [050] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
Plug
2
Yamaha Motors
Plug90338-07180-00
Required: 1
PLUG
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
4
Required: 18
SCREW, TAPPING
Price unavailable
5
Required: 4
NUT, SPRING
Price unavailable
RIVET
6
Yamaha Motors
RIVET90269-06001-00
Required: 2
RIVET
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
BOLT
7
Yamaha Motors
BOLT90111-05018-00
Required: 2
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
8
Required: 2
NUT, SPRING
Price unavailable
9
Required: 2
BOLT
Price unavailable
10
Required: 1
LEG SHIELD 2
Price unavailable
11
Required: 4
SCREW, TAPPING
Price unavailable
12
Required: 2
SPRING
Price unavailable
13
Required: 2
PIN, LOCK
Price unavailable
14
Required: 1
MOLE 5
Price unavailable
15
Required: 1
MOLE 6
Price unavailable
16
Required: 1
LID 3
Price unavailable
17
Required: 1
SCREW, TAPPING
Price unavailable
18
Required: 1
LID 4
Price unavailable
19
Required: 1
SCREW, TAPPING
Price unavailable
20
Required: 1
LOCK ASSY
Price unavailable
Lock Spring
21
Yamaha Motors
Lock Spring59C-2176V-00-00
Required: 2
SPRING, LOCK 2
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
Lock Stay
22
Yamaha Motors
Lock Stay59C-2117K-00-00
Required: 2
STAY, LOCK
Cross Ship
Leaves in 2-5 days
$3.60
$3.06
You save $0.54
More details
23
Required: 1
LABEL, WARNING
Price unavailable
24
Required: 2
CAP
Price unavailable
25
Required: 1
CAP
Price unavailable
26
Required: 1
CAP 2
Price unavailable
27
Required: 1
LID 1
Price unavailable
28
Required: 1
COVER 1
Price unavailable
Truss Screw
29
Yamaha Motors
Truss Screw97707-40012-00
Required: 4
SCREW, TAPPING
Supersedes: 97702-40012-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
30
Required: 1
BRACKET
Price unavailable
31
Required: 1
DAMPER, PLATE
Price unavailable
32
Required: 1
LID 2
Price unavailable
33
Required: 1
DAMPER, PLATE
Price unavailable
34
Required: 1
COVER 2
Price unavailable
35
Required: 1
BRACKET
Price unavailable
Truss Screw
36
Yamaha Motors
Truss Screw97707-40012-00
Required: 3
SCREW, TAPPING
Supersedes: 97702-40012-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
37
Required: 1
PANEL, INNER 3
Price unavailable
39
Required: 4
SCREW, TAPPING
Price unavailable
40
Required: 1
MOLE 2
Price unavailable
41
Required: 1
MOLE 4
Price unavailable
