2016 Scooter YP250RA - YP250RA (2DLB) [020] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

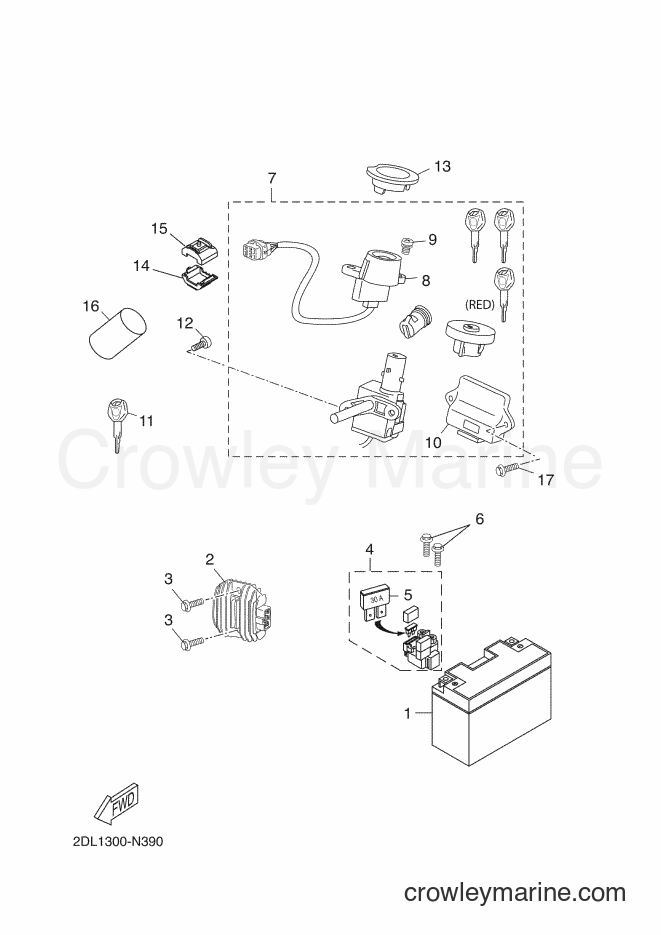

Yamaha Motors YP250RA (2DLB) [020] - ELECTRICAL 1
Change View:
1
Required: 1
BATTERY ASSY
Price unavailable
Rectifier & Regulator Assembly
2
Yamaha Motors
Rectifier & Regulator Assembly5BN-81960-00-00
Required: 1
RECTIFIER & REGULATOR ASSY
Cross Ship
Leaves in 2-5 days
$223.99
$190.39
You save $33.60
More details
3
Required: 2
BOLT, FLANGE
Price unavailable
Starter Relay Assembly
4
Yamaha Motors
Starter Relay Assembly4SV-81940-12-00
Required: 1
STARTER RELAY ASSY (RC19-015)
Cross Ship
Leaves in 2-5 days
$133.99
$113.89
You save $20.10
More details
Fuse (30A-Bl)
5
Yamaha Motors
Fuse (30A-Bl)1AE-82151-00-00
Required: 2
. FUSE (30A-BL)
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
6
Required: 2
BOLT
Price unavailable
7
Required: 1
MAIN SW. IMMOBILIZER KIT
Price unavailable
8
Required: 1
. IMMOBILIZER. UNIT COMP.
Price unavailable
Screw (M8 X 40)
9
Yamaha Motors
Screw (M8 X 40)5VU-82113-01-00
Required: 2
. SCREW
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
10
Required: 1
. ENGINE CONTROL UNIT ASSY
Price unavailable
11
Required: 1
BLANK KEY
Price unavailable
12
Required: 2
BOLT
Price unavailable
13
Required: 1
COVER
Price unavailable
14
Required: 1
HOUSING, CONNECTOR 1
Price unavailable
15
Required: 1
HOUSING, CONNECTOR 2
Price unavailable
16
Required: 1
CASE COMP, UNDER
Price unavailable
