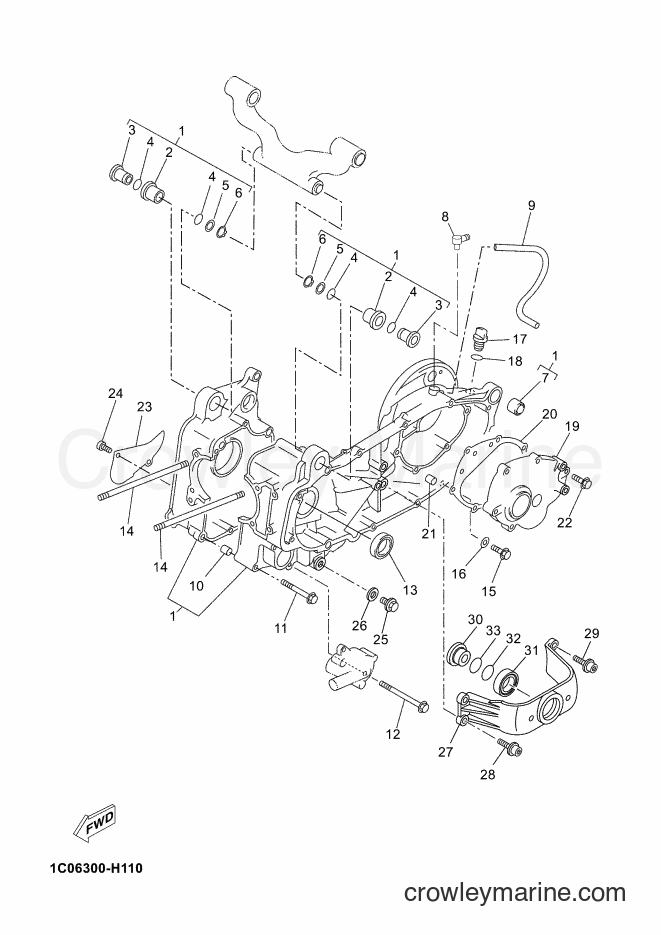

2016 Scooter YP250RA - YP250RA (2DLB) [010] CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP250RA (2DLB) [010] - CRANKCASE
Change View:
1
Required: 1
CRANKCASE ASSY
Price unavailable
2
Required: 2
. HOLDER
Price unavailable
3
Required: 2
. COLLAR
Price unavailable
Plate Washer
5
Yamaha Motors
Plate Washer90201-162H4-00
Required: 2
. WASHER, PLATE
Supersedes: 90201-16242-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
6
Required: 2
. CIRCLIP
Price unavailable
Rear Shock Absorber Bushing
7
Yamaha Motors
Rear Shock Absorber Bushing164-22216-00-00
Required: 1
. BUSH, REAR SHOCK ABSORBER
Supersedes: 4X6-F2216-00-00
Cross Ship
Leaves in 2-5 days
$14.49
$12.32
You save $2.17
More details
BREATHER ASSEMBLY
8
Yamaha Motors
BREATHER ASSEMBLY37P-E5371-00-00
Required: 1
BREATHER
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
9
Required: 1
HOSE
Price unavailable
10
Required: 2
PIN, DOWEL
Price unavailable
11
Required: 4
BOLT, FLANGE
Price unavailable
12
Required: 5
BOLT, FLANGE
Price unavailable
SD-TYPE OIL SEAL
13
Yamaha Motors
SD-TYPE OIL SEAL93102-30284-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$17.49
$14.87
You save $2.62
More details
14
Required: 4
BOLT, STUD
Price unavailable
15
Required: 1
BOLT, FLANGE
Price unavailable
16
Required: 1
GASKET
Price unavailable
Oil Plug
17
Yamaha Motors
Oil Plug3VL-E5363-00-00
Required: 1
PLUG, OIL
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
18
Required: 1
O-RING
Price unavailable
19
Required: 1
COVER, CRANKCASE 2
Price unavailable
20
Required: 1
GASKET, CRANKCASE COVER 2
Price unavailable
21
Required: 2
PIN, DOWEL
Price unavailable
22
Required: 6
BOLT, FLANGE
Price unavailable
23
Required: 1
COVER
Price unavailable
BOLT
24
Yamaha Motors
BOLT91312-06014-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
25
Required: 1
PLUG, STRAIGHT SCREW
Price unavailable
26
Required: 1
GASKET
Price unavailable
27
Required: 1
BRACKET
Price unavailable
28
Required: 2
SCREW
Price unavailable
29
Required: 2
SCREW
Price unavailable
30
Required: 1
SPACER
Price unavailable
31
Required: 1
BEARING
Price unavailable
32
Required: 1
O-RING
Price unavailable
33
Required: 1
O-RING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
