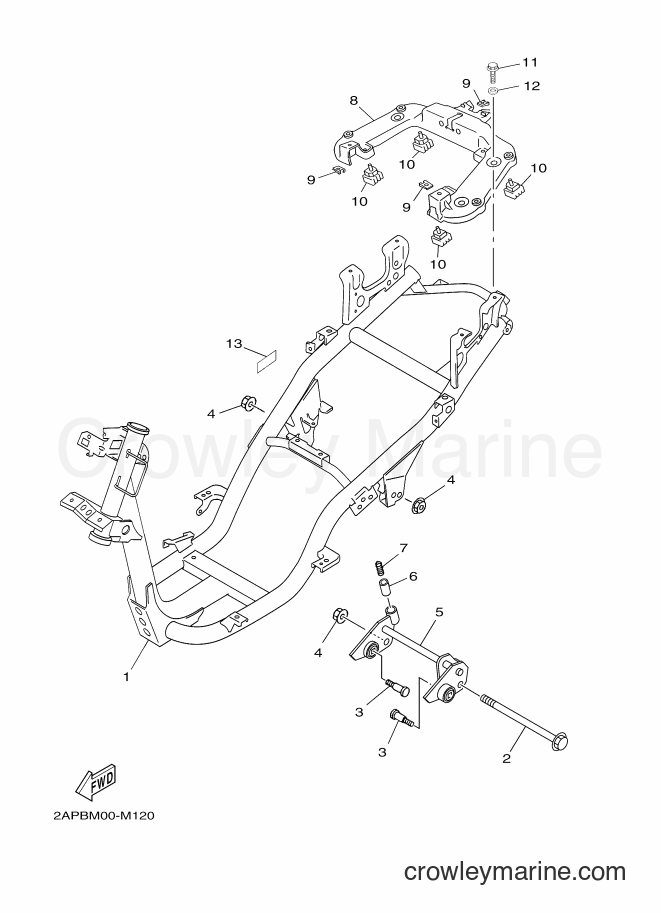

2016 Scooter YN50 - YN50 (2APJ) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YN50 (2APJ) [010] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
Flange Bolt
2
Yamaha Motors
Flange Bolt90105-10N52-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
3
Required: 2
BOLT, ENGINE MOUNTING 1
Price unavailable
Self-Locking Nut
4
Yamaha Motors
Self-Locking Nut90185-10154-00
Required: 3
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
5
Required: 1
ENGINE BRACKET COMP.
Price unavailable
6
Required: 1
DAMPER
Price unavailable
Compression Spring
7
Yamaha Motors
Compression Spring90501-290K2-00
Required: 1
SPRING, COMPRESSION
Supersedes: 90501-29517-00
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
8
Required: 1
REINFORCEMENT, TAIL
Price unavailable
9
Required: 3
NUT, SPRING
Price unavailable
10
Required: 4
DAMPER, RUBBER 1
Price unavailable
11
Required: 4
BOLT
Price unavailable
12
Required: 4
WASHER, PLATE
Price unavailable
13
Required: 1
LABEL
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
