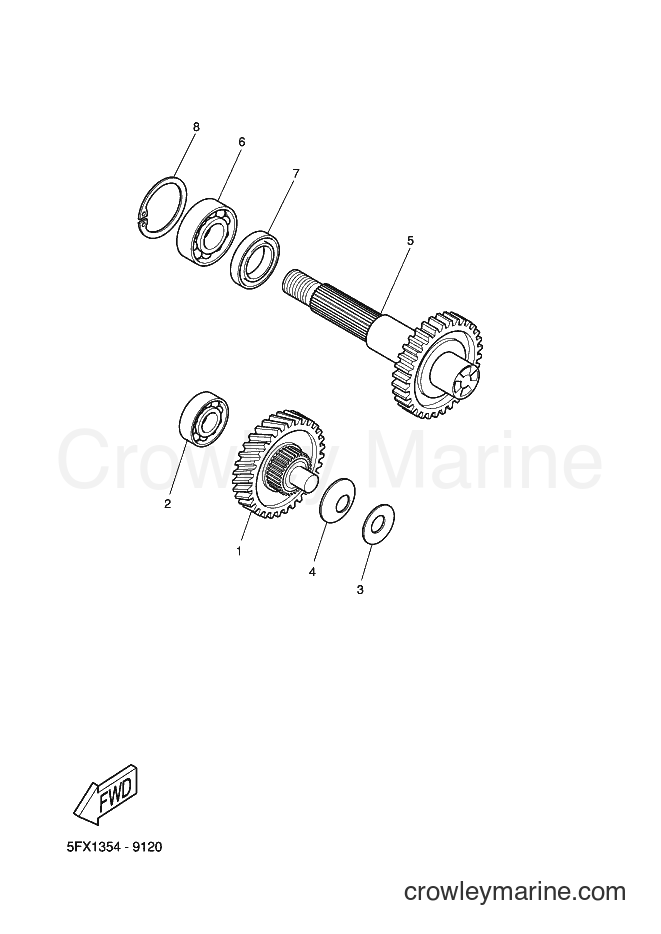

2016 Scooter YN50 - YN50 (2APH) [050] TRANSMISSION diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YN50 (2APH) [050] - TRANSMISSION
Change View:
Main Axle Comp.
1
Yamaha Motors
Main Axle Comp.4SB-E7410-00-00
Required: 1
MAIN AXLE COMP.
Cross Ship
Leaves in 2-5 days
$184.99
$157.24
You save $27.75
More details
2
Required: 1
BEARING
Price unavailable
Plate Washer
3
Yamaha Motors
Plate Washer90201-140G5-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Conical Spring Washer
4
Yamaha Motors
Conical Spring Washer90208-14047-00
Required: 1
WASHER, CONICAL SPRING
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details
5
Required: 1
DRIVE AXLE ASSY
Price unavailable
6
Required: 1
BEARING
Price unavailable
Oil Seal (1JY)
7
Yamaha Motors
Oil Seal (1JY)93102-22897-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$20.99
$17.84
You save $3.15
More details
8
Required: 1
CIRCLIP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
