All diagrams for this model

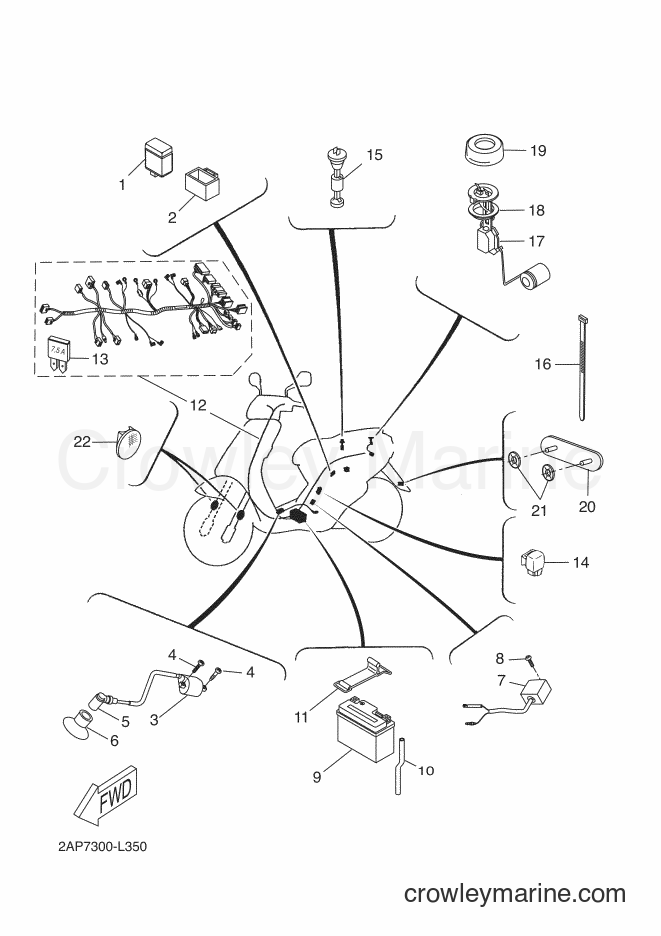

2016 Scooter YN50 - YN50 (2APH) [040] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YN50 (2APH) [040] - ELECTRICAL 2
Change View:
C.D.I. UNIT ASSY
1
Yamaha Motors
C.D.I. UNIT ASSY5BM-H5540-20-00
Required: 1
C.D.I. UNIT ASSY
Cross Ship
Leaves in 2-5 days
$155.99
$132.59
You save $23.40
More details
2
Required: 1
BAND
Price unavailable
3
Required: 1
IGNITION COIL ASSY
Price unavailable
4
Required: 1
BOLT
Price unavailable
Plug Cap Assembly
5
Yamaha Motors
Plug Cap AssemblySPC-LB05F-00-00
Required: 1
PLUG CAP ASSY
Supersedes: 3WG-H2370-10-00
Cross Ship
Leaves in 2-5 days
$28.99
$24.64
You save $4.35
More details
Plug Cap Seal
6
Yamaha Motors
Plug Cap Seal3WG-H2372-00-00
Required: 1
SEAL, PLUG CAP
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
7
Required: 1
UNIT, CONTROL
Price unavailable
95817-06016-00
8
Yamaha Motors
95817-06016-009580M-06016-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.99
$0.84
You save $0.15
More details
YB4LB YUASA BATTERY
9
Yamaha Motors
YB4LB YUASA BATTERYYB4-LB000-00-00
Required: 1
BATTERY ASSY (12V 4AH YB4L-B)
Supersedes: 4SB-H2110-00-00
Cross Ship
Leaves in 2-5 days
$29.99
$25.49
You save $4.50
More details
10
Required: 1
PIPE, BREATHER
Price unavailable
11
Required: 1
BAND, BATTERY
Price unavailable
12
Required: 1
WIRE HARNESS ASSY
Price unavailable
13
Required: 2
. FUSE (7.5A)
Price unavailable
14
Required: 1
RELAY ASSY
Price unavailable
15
Required: 1
OIL LEVEL GAUGE ASSY
Price unavailable
Switch Cord Band
16
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 1
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
17
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
18
Required: 1
GASKET, SENDER UNIT
Price unavailable
19
Required: 1
HOUSING, FUEL METER
Price unavailable
20
Required: 1
REAR REFLECTOR ASSY
Price unavailable
21
Required: 2
NUT, SPRING
Price unavailable
22
Required: 2
REFLECTOR, FRONT 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
