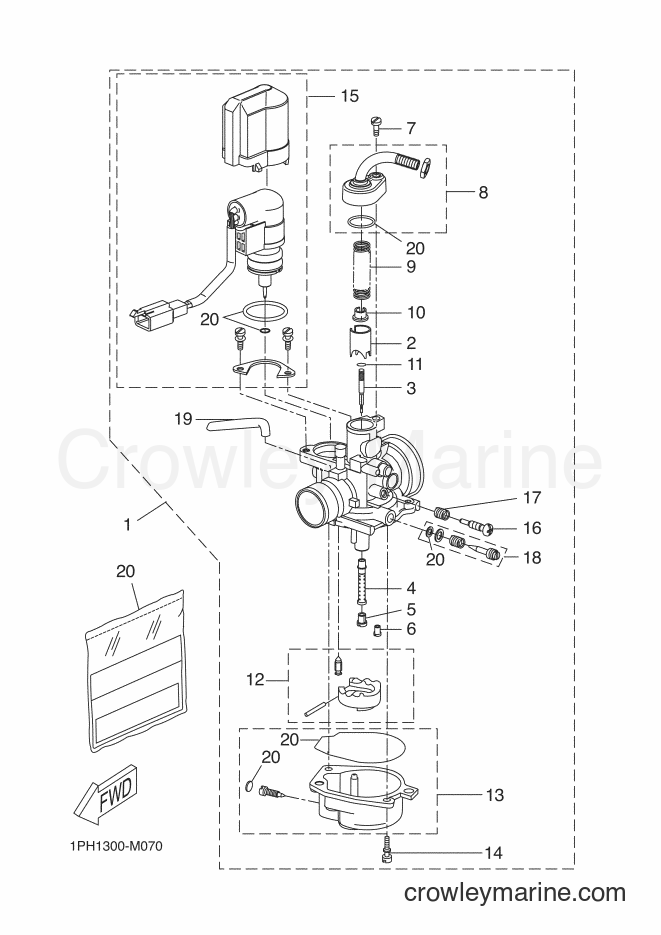

2016 Scooter YN50 - YN50 (2APH) [040] CARBURETOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YN50 (2APH) [040] - CARBURETOR
Change View:
1
Required: 1
CARBURETOR ASSY 1
Price unavailable
2
Required: 1
. VALVE,THROTTLE 1
Price unavailable
3
Required: 1
. NEEDLE
Price unavailable
4
Required: 1
. NOZZLE, MAIN
Price unavailable
5
Required: 1
. JET, MAIN
Price unavailable
6
Required: 1
. JET, PILOT
Price unavailable
Pan Head Screw
7
Yamaha Motors
Pan Head Screw5BR-E4325-00-00
Required: 1
. SCREW, PAN HEAD
Supersedes: 4SB-E4325-00-00
Cross Ship
Leaves in 2-5 days
$6.99
$5.94
You save $1.05
More details
8
Required: 1
. DIAPHRAGM ASS'Y 2
Price unavailable
9
Required: 1
. SPRING, THROTTLE VALVE
Price unavailable
Fuel Cam Shaft Stopper
10
Yamaha Motors
Fuel Cam Shaft Stopper4SB-E4377-00-00
Required: 1
. STOPPER
Cross Ship
Leaves in 2-5 days
$4.45
$3.78
You save $0.67
More details
Clip
11
Yamaha Motors
Clip4SB-E4137-00-00
Required: 1
. CLIP
Cross Ship
Leaves in 2-5 days
$0.85
$0.72
You save $0.13
More details
12
Required: 1
. FLOAT AND NEEDLE VALVE SET
Price unavailable
13
Required: 1
. BODY, FLOAT CHAMBER
Price unavailable
Screw (M8 X 40)
14
Yamaha Motors
Screw (M8 X 40)5RN-E4D16-00-00
Required: 2
. SCREW
Cross Ship
Leaves in 2-5 days
$5.00
$4.25
You save $0.75
More details
15
Required: 1
. STARTER SET
Price unavailable
Air Screw
16
Yamaha Motors
Air Screw4SB-E4104-00-00
Required: 1
. AIR SCREW SET
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
Air Adjust Spring
17
Yamaha Motors
Air Adjust Spring4SB-E4134-00-00
Required: 1
. SPRING, AIR ADJUSTING
Cross Ship
Leaves in 2-5 days
$2.99
$2.54
You save $0.45
More details
18
Required: 1
. THROTTLE SCREW SET
Price unavailable
19
Required: 1
. PIPE
Price unavailable
20
Required: 1
. GASKET KIT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
