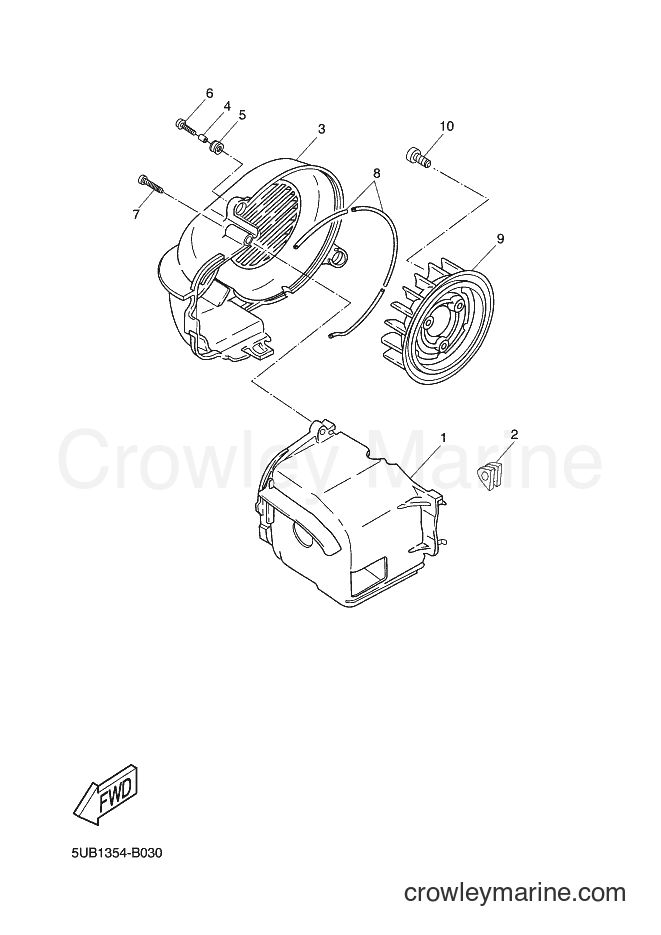

2016 Scooter YN50 - YN50 (2APH) [030] AIR SHROUD & FAN diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YN50 (2APH) [030] - AIR SHROUD & FAN
Change View:
1
Required: 1
AIR SHROUD, CYLINDER 1
Price unavailable
2
Required: 2
GROMMET
Price unavailable
3
Required: 1
AIR SHROUD, CYLINDER 3
Price unavailable
4
Required: 2
COLLAR
Price unavailable
5
Required: 2
GROMMET
Price unavailable
6
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
7
Required: 1
SCREW, TAPPING
Price unavailable
8
Required: 3
DAMPER, AIR SHROUD 1
Price unavailable
Fan
9
Yamaha Motors
Fan3VL-E2611-01-00
Required: 1
FAN
Supersedes: 3VL-E2611-00-00
Cross Ship
Leaves in 2-5 days
$17.99
$15.29
You save $2.70
More details
10
Required: 3
BOLT, HEXAGON SOCKET HEAD
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
