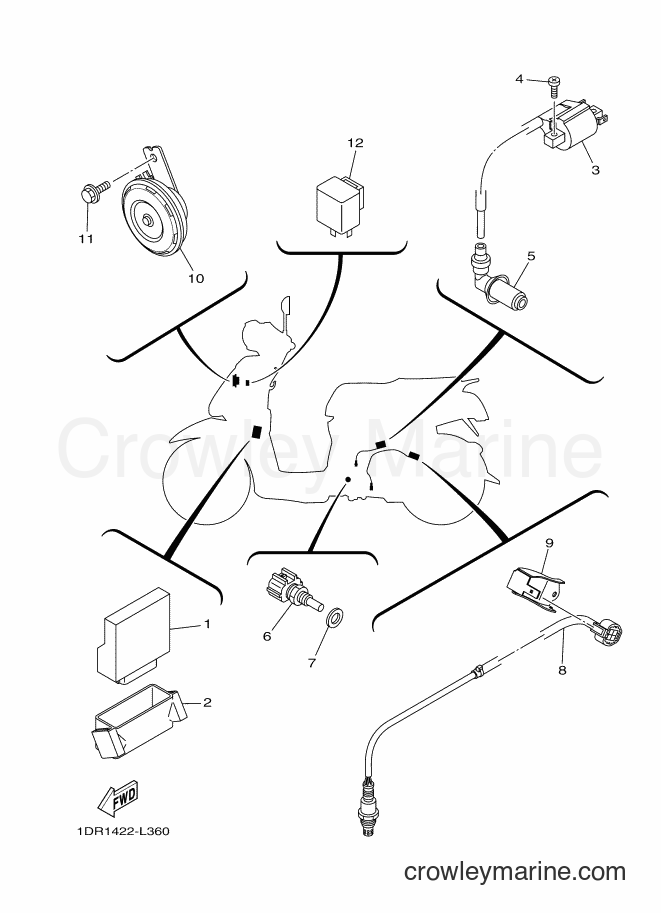

2016 Scooter XC115S - XC115S (1DR7) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC115S (1DR7) [010] - ELECTRICAL 2
Change View:
1
Required: 1
ENGINE CONTROL UNIT ASSY
Price unavailable
2
Required: 1
BAND
Price unavailable
3
Required: 1
IGNITION COIL ASSY
Price unavailable
4
Required: 2
SCREW, PAN HEAD
Price unavailable
5
Required: 1
PLUG CAP ASSY
Price unavailable
6
Required: 1
THERMO UNIT
Price unavailable
Tank Cap Gasket
7
Yamaha Motors
Tank Cap Gasket90430-10802-00
Required: 1
GASKET
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details
8
Required: 1
SENSOR, OXYGEN
Price unavailable
9
Required: 1
PLATE
Price unavailable
Horn
10
Yamaha Motors
Horn10B-H3371-00-00
Required: 1
HORN
Cross Ship
Leaves in 2-5 days
$28.99
$24.64
You save $4.35
More details
95817-06010-00
11
Yamaha Motors
95817-06010-0095812-06010-00
Required: 1
BOLT, FLANGE
Supersedes: 95802-06010-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
12
Required: 1
FLASHER RELAY ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
