2016 Scooter T150 - T150 (B152) [010] STARTER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

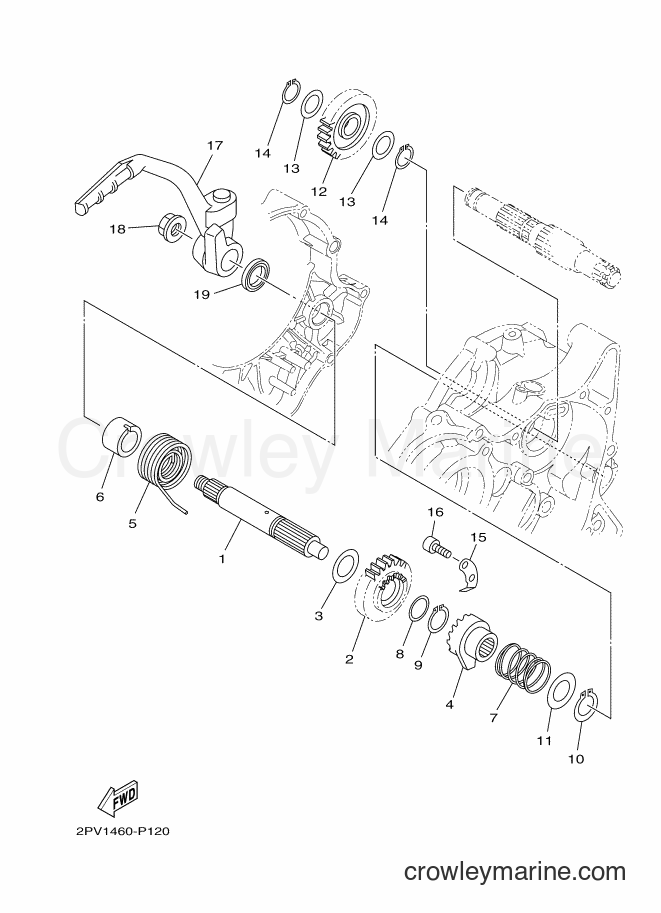

Yamaha Motors T150 (B152) [010] - STARTER
Change View:
1
Required: 1
AXLE, KICK
Price unavailable
2
Required: 1
GEAR, KICK
Price unavailable
Plate Washer
3
Yamaha Motors
Plate Washer90201-203E7-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
4
Required: 1
WHEEL, RATCHET
Price unavailable
5
Required: 1
SPRING, TORSION
Price unavailable
6
Required: 1
SPACER, ENGINE MOUNT
Price unavailable
7
Required: 1
SPRING
Price unavailable
Plate Washer
8
Yamaha Motors
Plate Washer90201-20685-00
Required: 1
WASHER, PLATE (T=0.5)
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
S -type Circlip
9
Yamaha Motors
S -type Circlip93410-20038-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$4.05
$3.44
You save $0.61
More details
S -type Circlip
10
Yamaha Motors
S -type Circlip99009-19400-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
11
Required: 1
WASHER, PLATE
Price unavailable
12
Required: 1
GEAR, KICK IDLE
Price unavailable
Plate Washer
13
Yamaha Motors
Plate Washer90201-175F6-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
Circle Clip
14
Yamaha Motors
Circle Clip99009-17400-00
Required: 2
CIRCLIP
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
15
Required: 1
GUIDE, RATCHET WHEEL
Price unavailable
17
Required: 1
KICK CRANK ASSY
Price unavailable
18
Required: 1
NUT
Price unavailable
19
Required: 1
OIL SEAL
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
