All diagrams for this model

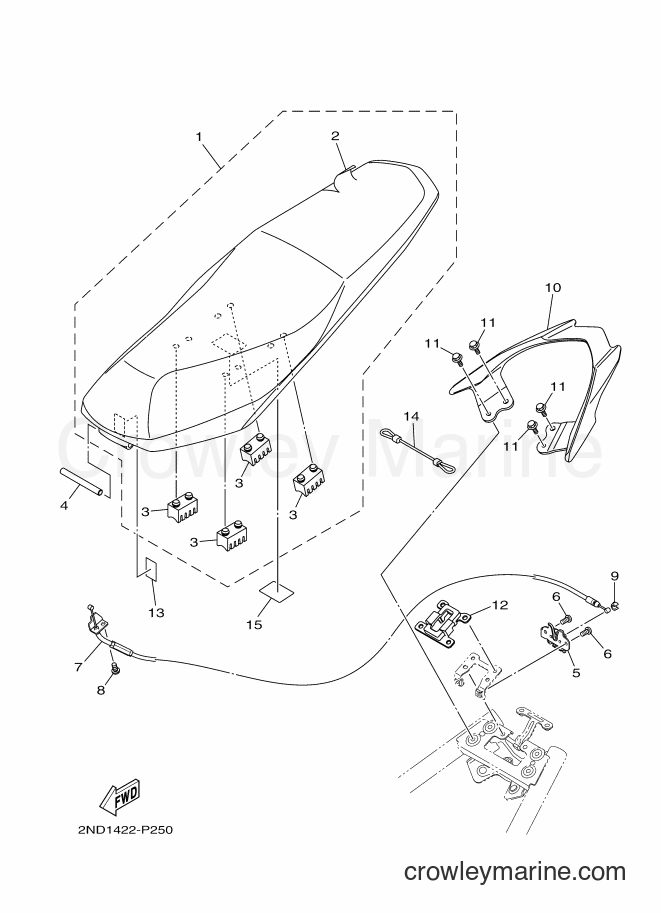

2016 Scooter T150 - T150 (2ND8) [990] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T150 (2ND8) [990] - SEAT
Change View:
1
Required: 1
DOUBLE SEAT ASSY
Price unavailable
2
Required: 1
. SEAT COVER COMP.
Price unavailable
3
Required: 4
. DAMPER, SEAT
Price unavailable
4
Required: 1
PIN, SEAT FITTING
Price unavailable
5
Required: 1
SEAT LOCK ASSY
Price unavailable
Screw
6
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-06012-00
Cross Ship
Leaves in 2-5 days
$4.10
$3.49
You save $0.62
More details
7
Required: 1
CABLE, SEAT LOCK
Price unavailable
9
Required: 1
STOPPER
Price unavailable
10
Required: 1
HANDLE, SEAT
Price unavailable
12
Required: 1
PROTECTOR, FRAME
Price unavailable
13
Required: 1
LABEL, NOTICE 1
Price unavailable
14
Required: 1
HANGER, HELMET
Price unavailable
15
Required: 1
OIL, LABEL
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
