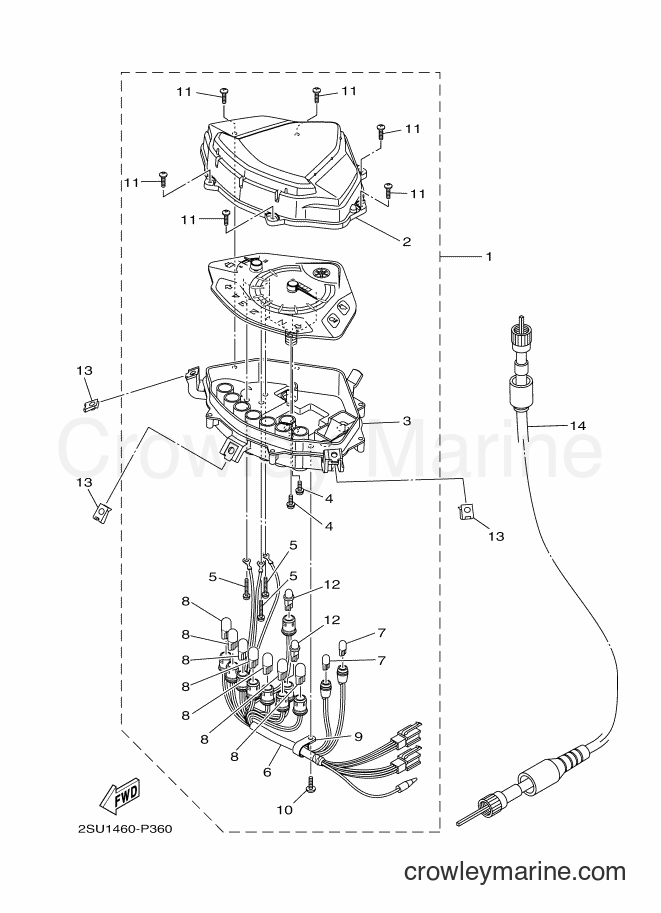

2016 Scooter T115FSEC - T115FSEC (2SU4) [010] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T115FSEC (2SU4) [010] - METER
Change View:
1
Required: 1
SPEEDOMETER ASSY
Price unavailable
2
Required: 1
. LENS, SPEEDOMETER
Price unavailable
3
Required: 1
. CASE, METER LOWER
Price unavailable
4
Required: 2
. SCREW, PAN HEAD WITH WASHER
Price unavailable
Screw with Washer
5
Yamaha Motors
Screw with Washer90159-03102-00
Required: 3
. SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
6
Required: 1
. SOCKET CORD ASSY
Price unavailable
Obsolete Yamaha Part
7
Yamaha Motors
Obsolete Yamaha Part3FV-83517-00-00
Required: 2
. BULB (12V-1.7W T6.5)
Supersedes: 2GV-83517-00-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
8
Required: 7
. BULB (12V-1.7W T10)
Price unavailable
Clamp
9
Yamaha Motors
Clamp5EL-8357E-00-00
Required: 1
. CLAMP
Cross Ship
Leaves in 2-5 days
$2.10
$1.78
You save $0.32
More details
Tapping Screw
10
Yamaha Motors
Tapping Screw97707-40014-00
Required: 1
. SCREW, TAPPING
Supersedes: 97702-40014-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
11
Required: 6
. BOLT
Price unavailable
12
Required: 2
. BULB, LED
Price unavailable
14
Required: 1
SPEEDOMETER CABLE ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
