2016 Scooter T115FSE - T115FSE (2SU3) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

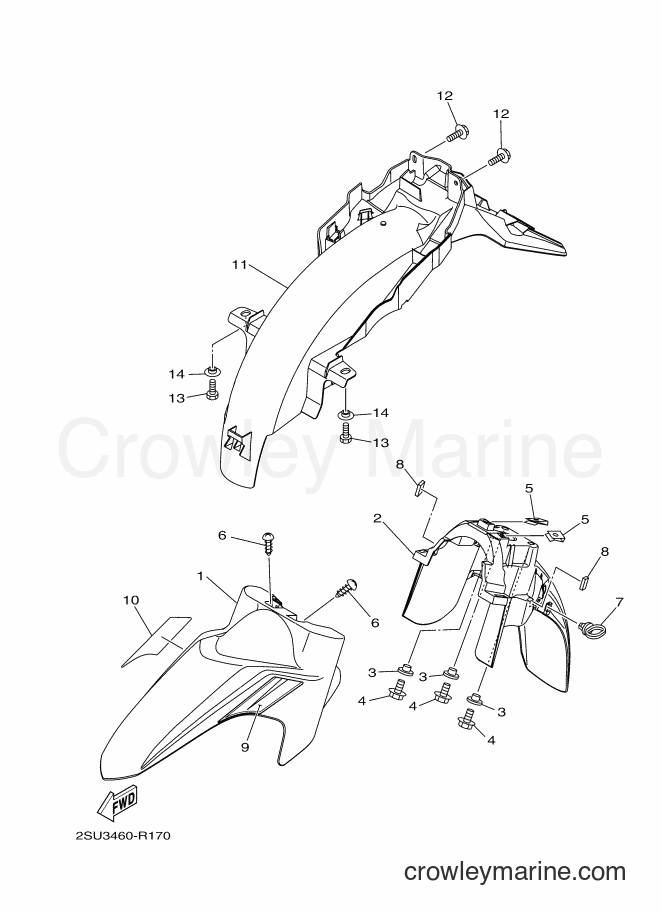

Yamaha Motors T115FSE (2SU3) [010] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
1
Required: 1
FENDER, FRONT
Price unavailable
2
Required: 1
FENDER, FRONT 2
Price unavailable
COLLAR
3
Yamaha Motors
COLLAR90387-06857-00
Required: 3
COLLAR
Cross Ship
Leaves in 2-5 days
$1.25
$1.06
You save $0.19
More details
Truss Screw
6
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
7
Required: 1
HOLDER, CABLE
Price unavailable
8
Required: 2
DAMPER
Price unavailable
9
Required: 1
GRAPHIC 1
Price unavailable
9
Required: 1
GRAPHIC 1
Price unavailable
10
Required: 1
GRAPHIC 2
Price unavailable
10
Required: 1
GRAPHIC 2
Price unavailable
11
Required: 1
FENDER, REAR
Price unavailable
12
Required: 2
BOLT, WITH WASHER
Price unavailable
97017-06016-00
13
Yamaha Motors
97017-06016-0097027-06016-00
Required: 2
BOLT, HEXAGON
Cross Ship
Leaves in 2-5 days
$0.95
$0.81
You save $0.14
More details
COLLAR
14
Yamaha Motors
COLLAR90387-07819-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$3.10
$2.63
You save $0.47
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
