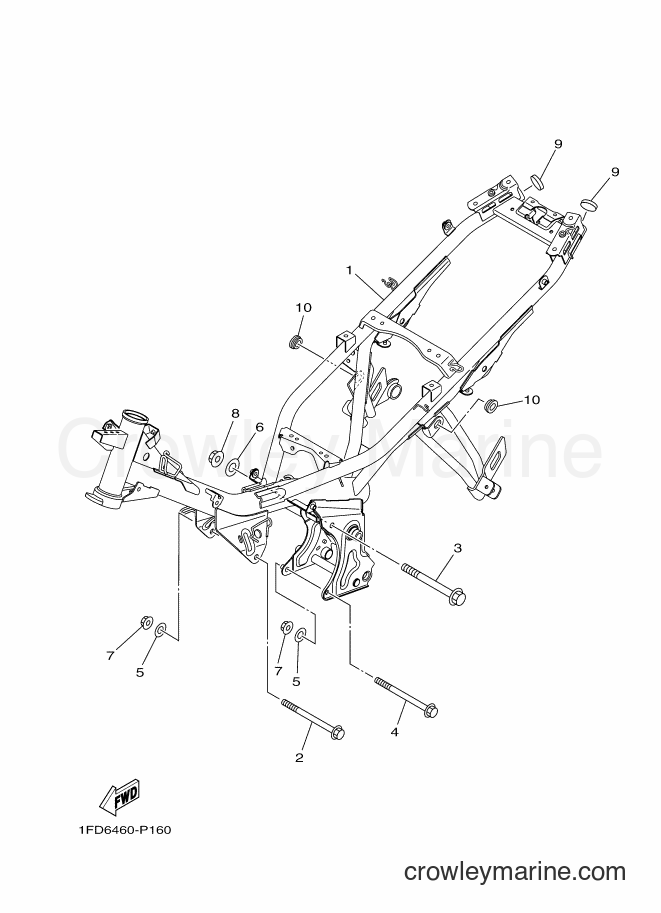

2016 Scooter T115FLE - T115FLE (1FDC) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T115FLE (1FDC) [010] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
2
Required: 1
BOLT, FLANGE
Price unavailable
3
Required: 1
BOLT, FLANGE
Price unavailable
4
Required: 1
BOLT, FLANGE
Price unavailable
6
Required: 1
WASHER, PLATE
Price unavailable
Self-locking Nut
7
Yamaha Motors
Self-locking Nut95602-08200-00
Required: 2
NUT, U FLANGE
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
Nut (1S72,5C81)
8
Yamaha Motors
Nut (1S72,5C81)90179-10805-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$2.75
$2.34
You save $0.41
More details
9
Required: 2
COVER 2
Price unavailable
Grommet
10
Yamaha Motors
Grommet90480-01559-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
