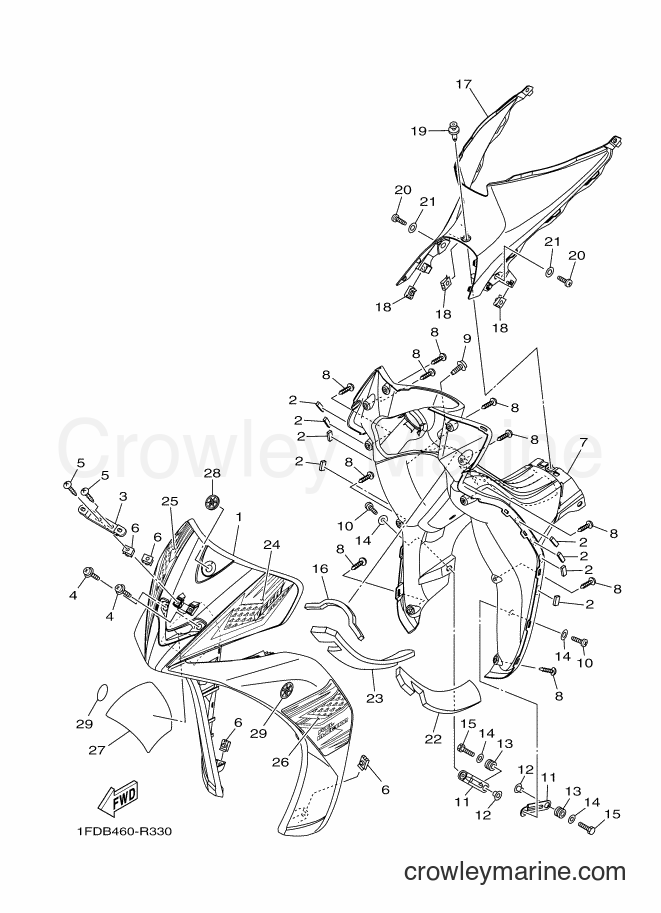

2016 Scooter T115FLE - T115FLE (1FDC) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T115FLE (1FDC) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
1
Required: 1
LEG SHIELD 1
Price unavailable
2
Required: 8
SEAL
Price unavailable
3
Required: 1
BRACKET, NUMBER PLATE
Price unavailable
4
Required: 2
SCREW, WITH WASHER
Price unavailable
Tapping Screw
5
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
7
Required: 1
LEG SHIELD 2
Price unavailable
Tapping Screw
8
Yamaha Motors
Tapping Screw97702-50016-00
Required: 10
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
9
Required: 1
SCREW, WITH WASHER
Price unavailable
Bind Screw
10
Yamaha Motors
Bind Screw98980-06020-00
Required: 2
SCREW, BIND
Supersedes: 98902-06020-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
11
Required: 2
STAY 1
Price unavailable
12
Required: 2
COLLAR
Price unavailable
13
Required: 2
GROMMET
Price unavailable
14
Required: 4
WASHER, PLATE
Price unavailable
BOLT
15
Yamaha Motors
BOLT97011-06020-00
Required: 2
BOLT
Supersedes: 97002-06020-00
Cross Ship
Leaves in 2-5 days
$0.95
$0.81
You save $0.14
More details
16
Required: 1
DAMPER, PLATE
Price unavailable
17
Required: 1
COVER 2
Price unavailable
RIVET
19
Yamaha Motors
RIVET90269-06812-00
Required: 1
RIVET
Cross Ship
Leaves in 2-5 days
$1.30
$1.10
You save $0.20
More details
Bind Screw
20
Yamaha Motors
Bind Screw98980-06020-00
Required: 2
SCREW, BIND
Supersedes: 98902-06020-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
21
Required: 2
WASHER, PLATE
Price unavailable
22
Required: 1
DAMPER, LOCATING 1
Price unavailable
23
Required: 1
DAMPER, LOCATING 2
Price unavailable
24
Required: 1
GRAPHIC, 13
Price unavailable
24
Required: 1
GRAPHIC, 13
Price unavailable
25
Required: 1
GRAPHIC, 14
Price unavailable
25
Required: 1
GRAPHIC, 14
Price unavailable
26
Required: 1
GRAPHIC, 15
Price unavailable
26
Required: 1
GRAPHIC, 15
Price unavailable
27
Required: 1
GRAPHIC, 16
Price unavailable
27
Required: 1
GRAPHIC, 16
Price unavailable
28
Required: 1
EMBLEM, 1
Price unavailable
29
Required: 2
TUNING FORK MARK
Price unavailable
