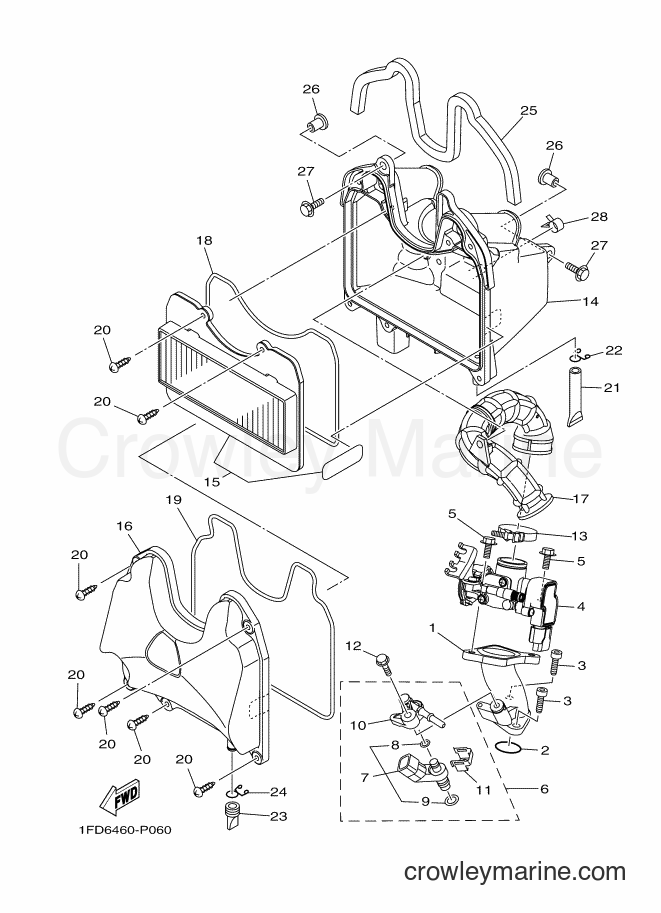

2016 Scooter T115FLSE - T115FLSE (1FDD) [010] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T115FLSE (1FDD) [010] - INTAKE
Change View:
1
Required: 1
MANIFOLD
Price unavailable
2
Required: 1
O-RING
Price unavailable
91311-06020-00
3
Yamaha Motors
91311-06020-0091312-06020-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$2.10
$1.78
You save $0.32
More details
4
Required: 1
THROTTLE BODY ASSY
Price unavailable
Flange Bolt
5
Yamaha Motors
Flange Bolt95022-06020-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details
6
Required: 1
INJECTOR ASSY
Price unavailable
7
Required: 1
. INJECTOR
Price unavailable
8
Required: 1
. . O-RING
Price unavailable
9
Required: 1
. . SEAL RING
Price unavailable
10
Required: 1
. PIPE
Price unavailable
11
Required: 1
. CLIP
Price unavailable
Flange Bolt
12
Yamaha Motors
Flange Bolt95812-06025-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.75
$0.64
You save $0.11
More details
13
Required: 1
BAND
Price unavailable
14
Required: 1
CASE, AIR CLEANER 1
Price unavailable
15
Required: 1
AIR CLEANER ELEMENT ASSY
Price unavailable
16
Required: 1
CAP, CLEANER CASE 1
Price unavailable
17
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
18
Required: 1
SEAL
Price unavailable
19
Required: 1
SEAL
Price unavailable
20
Required: 7
SCREW, TAPPING
Price unavailable
DRAIN PIPE
21
Yamaha Motors
DRAIN PIPE34X-1443E-00-00
Required: 1
PIPE, DRAIN
Supersedes: 4ST-E443E-00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Clip
22
Yamaha Motors
Clip90467-110A3-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
23
Required: 1
PIPE, DRAIN 2
Price unavailable
24
Required: 1
CLIP
Price unavailable
25
Required: 1
DAMPER, PLATE
Price unavailable
26
Required: 2
COLLAR
Price unavailable
CLIP (3P91)
28
Yamaha Motors
CLIP (3P91)90467-13808-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$0.55
$0.47
You save $0.08
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
