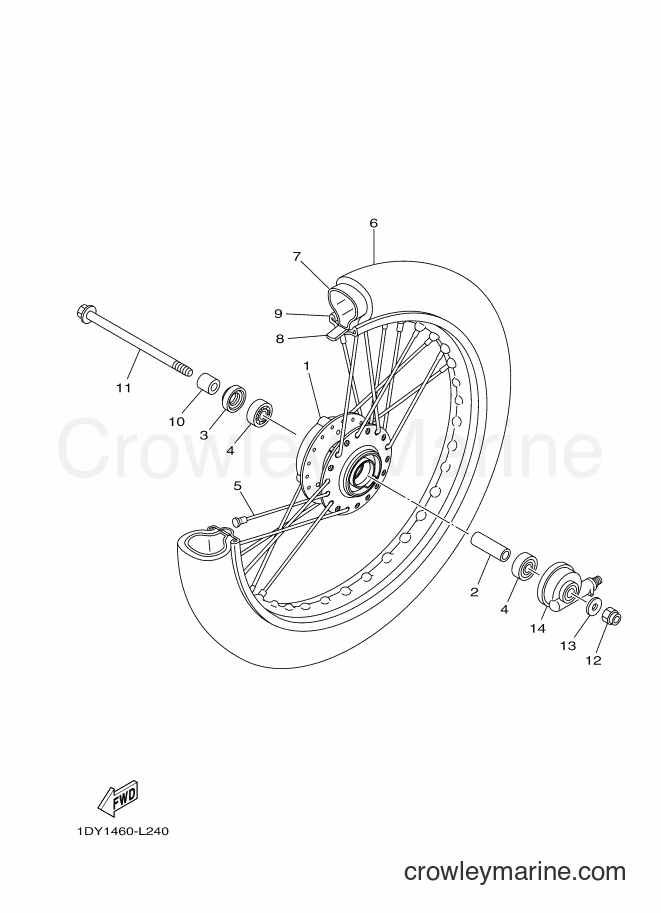

2016 Scooter T115FLE - T115FLE (1FDC) [010] FRONT WHEEL 3 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T115FLE (1FDC) [010] - FRONT WHEEL 3
Change View:
1
Required: 1
HUB, FRONT
Price unavailable
2
Required: 1
SPACER
Price unavailable
3
Required: 1
OIL SEAL
Price unavailable
4
Required: 2
BEARING
Price unavailable
5
Required: 1
SPOKE SET, FRONT
Price unavailable
6
Required: 1
TIRE (70/90-17 M/C 38L D102FA)
Price unavailable
7
Required: 1
TUBE (2.25/2.50-17 TR4)
Price unavailable
8
Required: 1
BAND, RIM (2.25/2.75-17)
Price unavailable
9
Required: 1
RIM (1.40-17)
Price unavailable
517 F. WHEEL COLLAR
10
Yamaha Motors
517 F. WHEEL COLLAR90387-10277-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
11
Required: 1
AXLE, WHEEL
Price unavailable
SELF-LOCKING NUT
12
Yamaha Motors
SELF-LOCKING NUT90185-10012-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$3.60
$3.06
You save $0.54
More details
Plain Washer
13
Yamaha Motors
Plain Washer90201-10035-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$4.50
$3.82
You save $0.68
More details
14
Required: 1
GEAR UNIT ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
