All diagrams for this model

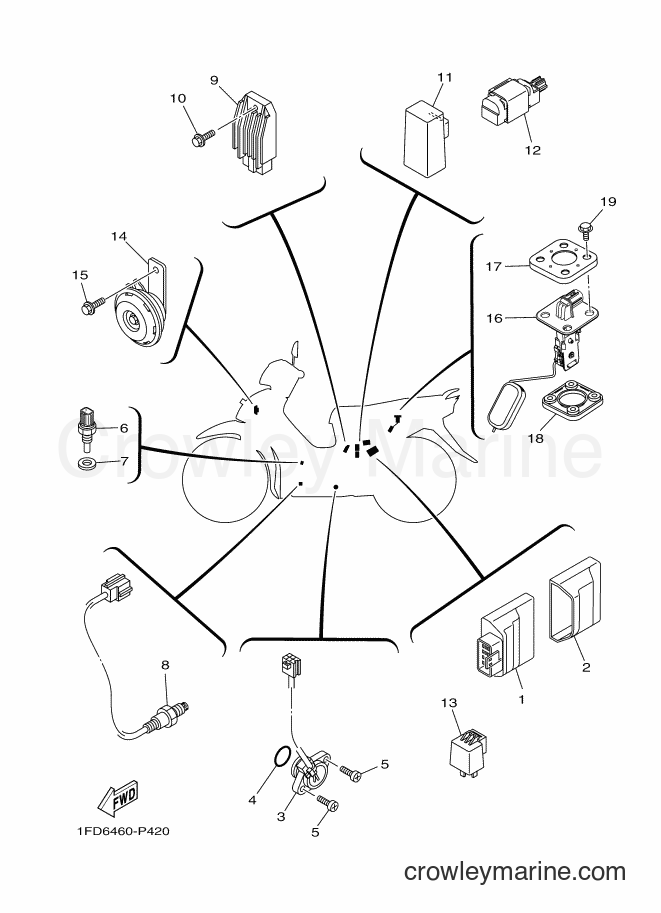

2016 Scooter T115FLSEC - T115FLSEC (1FDB) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T115FLSEC (1FDB) [010] - ELECTRICAL 2
Change View:
1
Required: 1
ENGINE CONTROL UNIT ASSY
Price unavailable
2
Required: 1
BAND
Price unavailable
3
Required: 1
NEUTRAL SWITCH ASSY
Price unavailable
O-RING (1S71)
4
Yamaha Motors
O-RING (1S71)93210-21801-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$1.55
$1.32
You save $0.23
More details
Thermostat Unit
6
Yamaha Motors
Thermostat Unit52B-H3591-00-00
Required: 1
THERMO UNIT
Supersedes: 54P-H3591-00-00
Cross Ship
Leaves in 2-5 days
$37.99
$32.29
You save $5.70
More details
Tank Cap Gasket
7
Yamaha Motors
Tank Cap Gasket90430-10804-00
Required: 1
GASKET
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
8
Required: 1
SENSOR, OXYGEN
Price unavailable
9
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
Flange Bolt
10
Yamaha Motors
Flange Bolt95022-06014-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.40
$2.89
You save $0.51
More details
11
Required: 1
STARTER RELAY ASSY
Price unavailable
12
Required: 1
CONDENSER, SMOOTHING
Price unavailable
13
Required: 1
FLASHER RELAY ASSY
Price unavailable
14
Required: 1
HORN
Price unavailable
95817-06010-00
15
Yamaha Motors
95817-06010-0095812-06010-00
Required: 1
BOLT, FLANGE
Supersedes: 95802-06010-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
16
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
17
Required: 1
RETAINER
Price unavailable
18
Required: 1
GASKET, SENDER UNIT
Price unavailable
Bolt with Washer
19
Yamaha Motors
Bolt with Washer90119-05022-00
Required: 4
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
