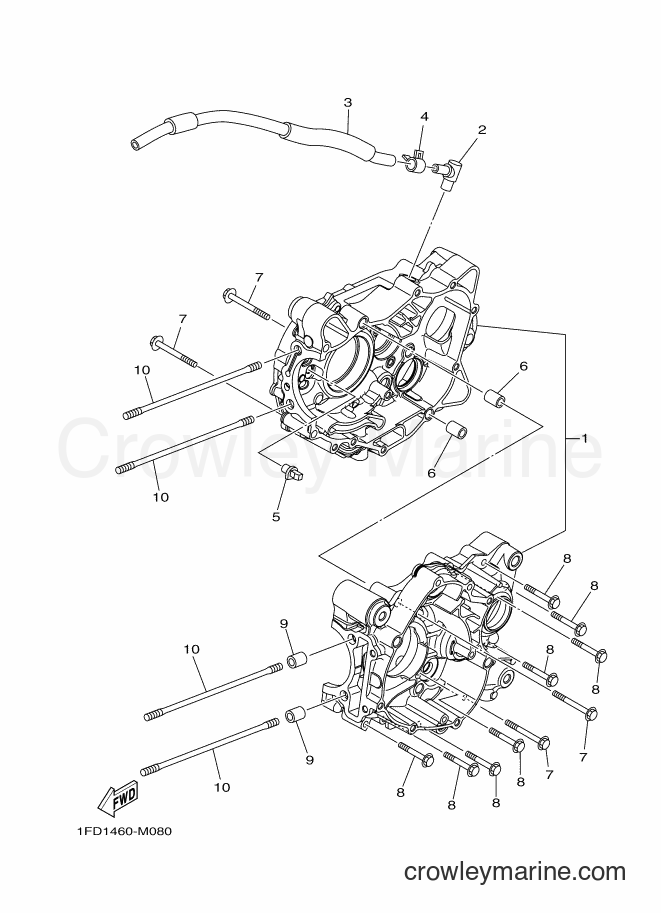

2016 Scooter T115FLSE - T115FLSE (1FDD) [010] CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T115FLSE (1FDD) [010] - CRANKCASE
Change View:
1
Required: 1
CRANKCASE ASSY
Price unavailable
2
Required: 1
BREATHER
Price unavailable
3
Required: 1
PIPE, BREATHER 1
Price unavailable
CLIP (3P91)
4
Yamaha Motors
CLIP (3P91)90467-13808-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$0.55
$0.47
You save $0.08
More details
NOZZLE
5
Yamaha Motors
NOZZLE5D9-E5155-01-00
Required: 1
NOZZLE 3
Supersedes: 5D9-E5155-00-00
Cross Ship
Leaves in 2-5 days
$14.49
$12.32
You save $2.17
More details
DOWEL PIN (5D21)
6
Yamaha Motors
DOWEL PIN (5D21)91810-14809-00
Required: 2
PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$2.95
$2.51
You save $0.44
More details
Flange Bolt
7
Yamaha Motors
Flange Bolt95022-06055-00
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.40
$1.19
You save $0.21
More details
Flange Bolt
8
Yamaha Motors
Flange Bolt95022-06040-00
Required: 8
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.70
$3.15
You save $0.56
More details
DOWEL PIN (5D21)
9
Yamaha Motors
DOWEL PIN (5D21)91810-14809-00
Required: 2
PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$2.95
$2.51
You save $0.44
More details
10
Required: 4
BOLT, STUD
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
