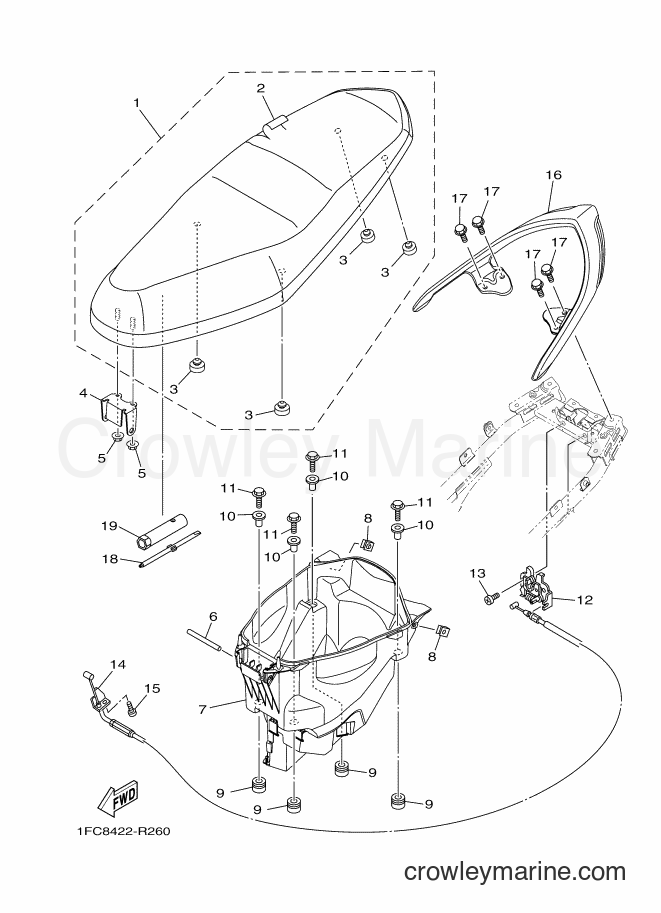

2016 Scooter T115FLSE - T115FLSE (1FC9) [010] SEAT diagram
![Yamaha Motors T115FLSE (1FC9) [010] - SEAT](https://cdn.crowleymarine.com/yamaha/lTWoRTpc.png)
1
Required: 1
DOUBLE SEAT ASSY
Price unavailable
2
Required: 1
. SEAT COVER COMP.
Price unavailable
3
Required: 4
. PAD, SEAT
Price unavailable
4
Required: 1
HINGE, SEAT
Price unavailable
In stock
Only 1 remaining
$2.21
You save $0.39
6
Required: 1
PIN, SEAT FITTING
Price unavailable
7
Required: 1
BOX 1
Price unavailable
-50%
8
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
9
Required: 4
GROMMET
Price unavailable
10
Required: 4
COLLAR
Price unavailable
$1.61
You save $0.28
12
Required: 1
SEAT LOCK ASSY
Price unavailable
13
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-06012-00
$3.60
You save $0.50
14
Required: 1
CABLE, SEAT LOCK
Price unavailable
-50%
15
Yamaha Motors
PAN HEAD SCREW (3SX)98517-05010-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98502-05010-00
In stock
Only 4 remaining
$2.30
You save $2.30
16
Required: 1
HANDLE, SEAT (1121,SMY)
Price unavailable
16
Required: 1
HANDLE, SEAT (1218,RM7)
Price unavailable
17
Required: 4
BOLT, FLANGE
Price unavailable
18
Required: 1
DRIVER
Price unavailable
19
Required: 1
BOX, SPARK PLUG
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
