2016 Scooter T115FLSE - T115FLSE (1FPA) [010] FRONT MASTER CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

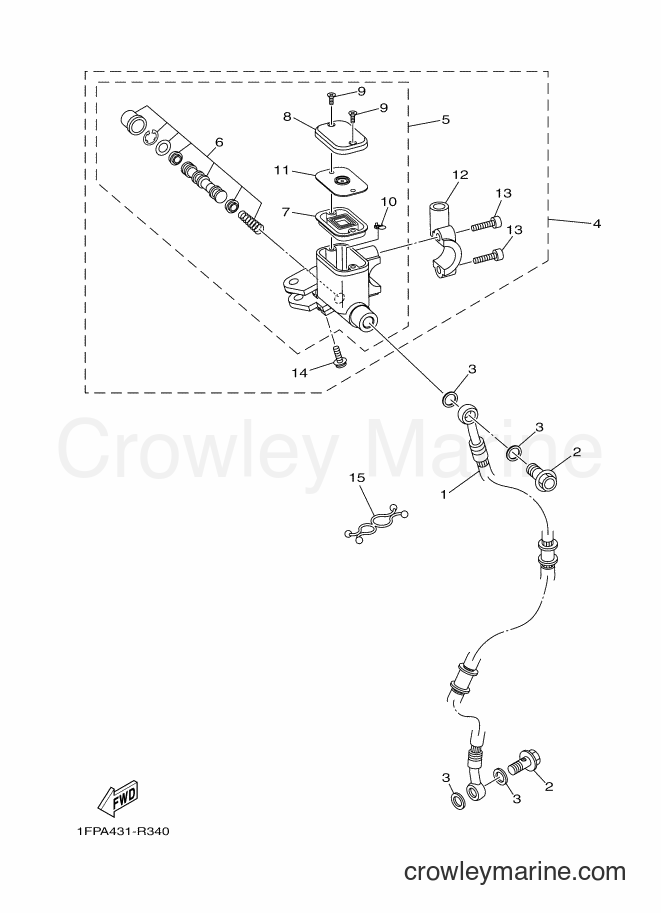

Yamaha Motors T115FLSE (1FPA) [010] - FRONT MASTER CYLINDER
Change View:
1
Required: 1
HOSE, BRAKE 1
Price unavailable
1
Required: 1
HOSE, BRAKE 1
Price unavailable
Union Bolt (3GM)
2
Yamaha Motors
Union Bolt (3GM)90401-10159-00
Required: 2
BOLT, UNION
Supersedes: 90401-10812-00
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
Plate Washer
3
Yamaha Motors
Plate Washer90201-10118-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details
4
Required: 1
MASTER CYLINDER ASSY
Price unavailable
5
Required: 1
. MASTER CYLINDER SUB ASSY
Price unavailable
6
Required: 1
. . MASTER CYLINDER SUB ASSY 2
Price unavailable
7
Required: 1
. . DIAPHRAGM, RESERVOIR
Price unavailable
8
Required: 1
. . CAP, RESERVOIR
Price unavailable
Flat Screw
9
Yamaha Motors
Flat Screw98707-04012-00
Required: 2
. . SCREW
Supersedes: 36Y-2589H-00-00
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
Separator
10
Yamaha Motors
Separator3RW-25889-00-00
Required: 1
. . SEPARATOR
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
11
Required: 1
. . BUSH,DIAPHRAGM
Price unavailable
12
Required: 1
. BRACKET,MASTER CYLINDER(BLACK)
Price unavailable
Pan Head Screw
14
Yamaha Motors
Pan Head Screw98511-04012-00
Required: 1
. SCREW, PAN HEAD WITH WASHER
Supersedes: 97602-04312-00
Cross Ship
Leaves in 2-5 days
$2.10
$1.78
You save $0.32
More details
15
Required: 1
CLAMP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
